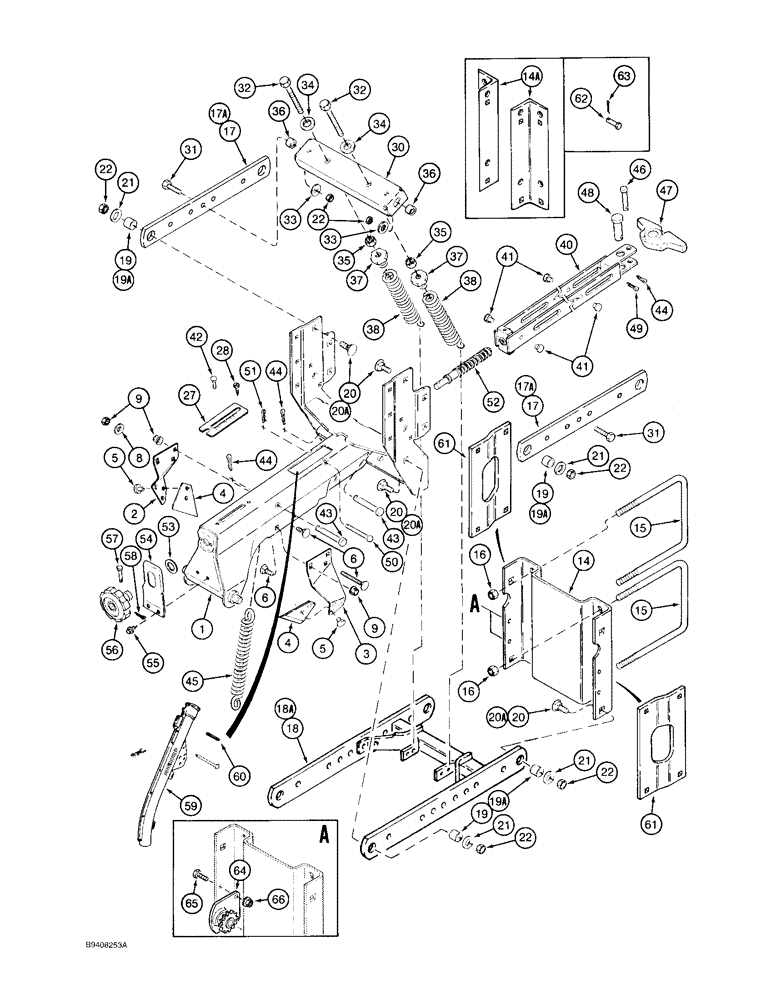

Запчасти Case IH 950 (9D-05A) - ROW UNIT FRAME, 11 ROW AND 15 ROW SOLID ROW CROP PLANTER (09) - CHASSIS/ATTACHMENTS

1

1547308C1

FRAME ASSY

FRAME - planter unit

1шт.

2

147436C93

SCRAPER

ASSEMBLY - disc, left (Includes Ref. 4 and 5)

1шт.

3

1978897C1

SCRAPER

ASSEMBLY - disc, right (Replaces 147439C93)

1шт.

4

147438C2

HALF BLADE

BLADE - scraper

1шт.

5

147274C1

RIVET,4.78mm OD x 10mm L

- special, 3/16 x 3/8 inch

2шт.

6

111-260

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2

BOLT - carriage, 5/16 NC x 5/8 inch

4шт.

6

111-225

CARRIAGE BOLT,Short NK, 5/16"-18 x 2 1/2", G2

BOLT - carriage, 5/16 NC x 2-1/2 inch

1шт.

8

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

9

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

4шт.

14

141728C2

ANGLE

SUPPORT - head bracket, linkage, Serial Range: mounting-frame

1шт.

14a

127475A2

ANGLE

- mounting, linkage to frame (Used at drive wheel and module frame mounting location with extended linkage)

2шт.

15

1250813C1

U-BOLT

- 5/8 inch NC

2шт.

16

129-107

NUT,5/8"-11, G5

4шт.

17

137507C3

BAR

BRACKET - linkage, upper (standard)

2шт.

17a

1254306C3

LINK

BRACKET - linkage, upper (extended)

2шт.

18

147354C2

SUPPORT

- linkage, lower (standard)

1шт.

18a

123145A2

SUPPORT

- linkage, lower (extended)

1шт.

19

137512C2

BUSHING

- linkage pivot (standard)

8шт.

19a

1254302C1

BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L

- linkage pivot (extended)

8шт.

20

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - carriage, 1/2 NC x 1-1/4 inch, used with standard linkage

8шт.

20a

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch, used with extended linkage

8шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

8шт.

22

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

8шт.

27

147326C2

GAUGE

- depth

1шт.

28

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

2шт.

30

141729C1

CHANNEL

SUPPORT - spring mounting

1шт.

31

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

149439C1

SPECIAL BOLT,Spcl, Hex, 1/2" - 13 x 4.25", Gr 5

BOLT - hex special

2шт.

33

21403R1

WASHER

- flat, 13/32 x 1 x 7/64 inch

2шт.

34

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

35

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

36

141730C1

SPACER,10.34mm ID x 19.05mm OD x 7mm L

- spring mounting

2шт.

37

144847C1

PLUG

- spring

2шт.

38

140579C1

SPRING

- linkage

2шт.

40

147276C3

BAR

- tension

1шт.

41

147483C1

PLUG

- tension bar

4шт.

42

1277597C1

STUD

- barbed, No. 12 x 3/4 inch

1шт.

43

23173R1

CLEVIS PIN

PIN - clevis, 1/2 x 2-3/4 inch

2шт.

44

432-1216

COTTER PIN,3/16" x 1"

3шт.

45

147425C5

SPRING

- press wheel

1шт.

46

671034R1

PIN

- clevis, 1/2 x 1-1/2 inch

1шт.

47

1279508C1

BRACKET

- wobble

1шт.

48

21084R1

CLEVIS PIN

PIN - clevis 3/4 x 1-51/64 inch

1шт.

49

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

50

147310C1

HEADED PIN,6.35mm OD x 69.85mm L

PIN - pointed, 1/4 x 2-3/4 inch, diffuser, Serial Range: tube-frame

1шт.

51

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

52

1279684C1

ROD

- depth adjusting

1шт.

53

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

1шт.

54

1279107C1

STRAP

COVER - detent

1шт.

55

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - hex washer head tapping, No. 10 x 3/8 inch

2шт.

56

1279740C91

KNOB

- detent, depth adjusting

1шт.

57

28020R1

PIN

- clevis, 1/4 x 1-1/4 inch

1шт.

58

132-333

COTTER PIN,1/8" x 5/8"

PIN - cotter, 1/8 x 1/2 inch

1шт.

59

1986373C1

TUBE

- diffuser, bottom

1шт.

60

17053R1

LOCK PIN,Sl Spring, 1/4" x 1 3/8"

PIN, 1/4" x 1 3/8", Slotted

1шт.

61

130033A2

EXTENSION

- head bracket, 2 used per extended row unit

1шт.

62

439-1620

HEADED PIN,3/8" x 1 1/4", G2

PIN - clevis, 3/8 x 1-1/4 inch (2 used per row unit for lockup position)

1шт.

63

544063R1

HAIR PIN COTTER

PIN - cotter, quick attachment

1шт.

64

103579A1

BEARING ASSY,0.894" ID x 3.62" OD x 1.875"

- bearing, 12 tooth (Standard row unit linkage)

1шт.

65

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

66

231-5146

FLANGE NUT,3/8"-16

2шт.
