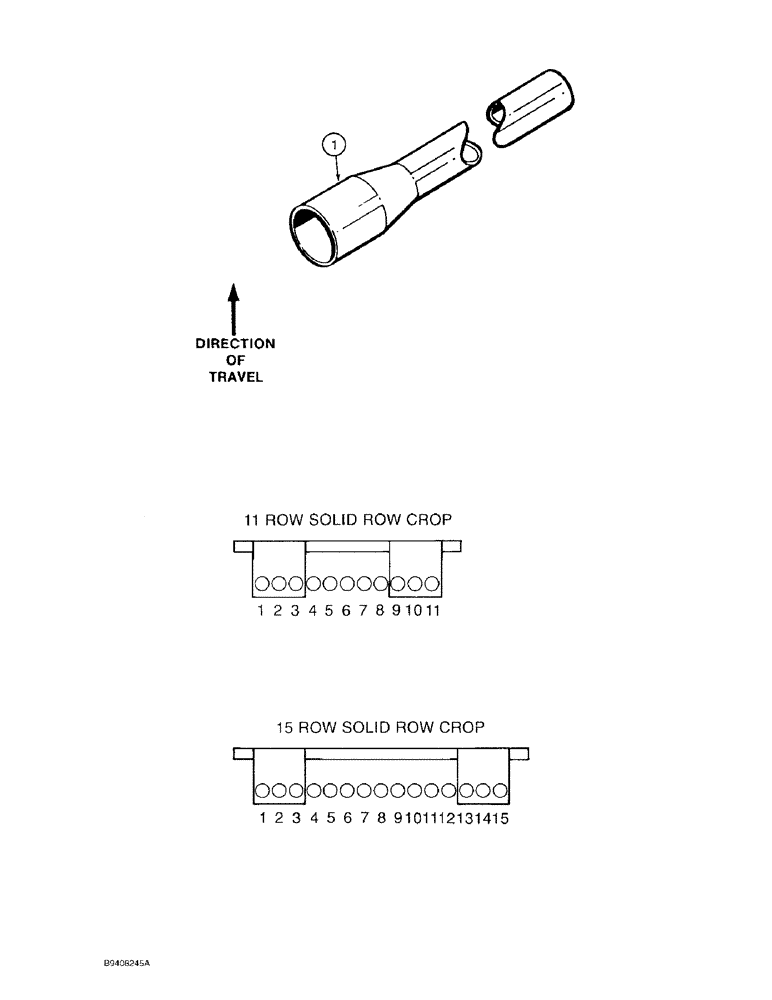

Запчасти Case IH 950 (9C-29A) - SEED DELIVERY TUBE, 11 ROW AND 15 ROW SOLID ROW CROP, 11 ROW (09) - CHASSIS/ATTACHMENTS

1

58238C2

TUBE

- seed delivery, 58 inch long, flared end, soft

1шт.

1a

546541R3

TUBE

- seed delivery, 100 foot long, rigid

1шт.

546541R3 TUBE,100 FOOT COIL WILL NO LONGER BE PROVIDED. NEW TUBE 130979A2 ( 195 INCHES LONG ) WILL FIT ALL APPLICATIONS.

1шт.

1

130979A1

TUBE

- seed delivery, 195 inch long, flared end,rigid

1шт.

1254367C1

TUBE - seed delivery, 47 inch, No. 1, order 58238C2 11 ROW

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 2, order 58238C2 11 ROW

1шт.

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed delivery, 42 inch, No. 3, order 58238C2 11 ROW

1шт.

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 4, order 58238C2 11 ROW

1шт.

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 5, order 546541R3 or 130979A1 11 ROW

1шт.

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 6, order 546541R3 or 130979A1 11 ROW

1шт.

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 7, order 546541R3 or 130979A1 11 ROW

1шт.

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 8, order 546541R3 or 130979A1 11 ROW

1шт.

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 9, order 58238C2 11 ROW

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 10, order 58238C2 11 ROW

1шт.

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed delivery, 42 inch, No. 11, order 58238C2 11 ROW

1шт.

1254367C1

TUBE - seed delivery, 47 inch, No. 1, order 58238C2 11 ROW

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 2, order 58238C2 11 ROW

1шт.

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed delivery, 42 inch, No. 3, order 58238C2 11 ROW

1шт.

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 4, order 58238C2 15 ROW

1шт.

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 5, order 546541R3 or 130979A1 15 ROW

1шт.

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 6, order 546541R3 or 130979A1 15 ROW

1шт.

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 7, order 546541R3 or 130979A1 15 ROW

1шт.

115918A1

TUBE,17.45 - 28.5 mm OD, 2800 mm Length

- seed delivery, 110 inch, No. 8, order 546541R3 or 130979A1 15 ROW

1шт.

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 9, order 546541R3 or 130979A1 15 ROW

1шт.

1337529C1

TUBE,17.45 - 28.5 mm OD, 2140 mm Length

- seed delivery, 84 inch, No. 10, order 546541R3 or 130979A1 15 ROW

1шт.

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 11, order 546541R3 or 130979A1 15 ROW

1шт.

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 12, order 546541R3 or 130979A1 15 ROW

1шт.

1337522C1

TUBE,17.45 - 28.5 mm OD, 1370 mm Length

- seed delivery, 54 inch, No. 13, order 58238C2 15 ROW

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 14, order 58238C2 15 ROW

1шт.

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed delivery, 42 inch, No. 15, order 58238C2 15 ROW

1шт.
