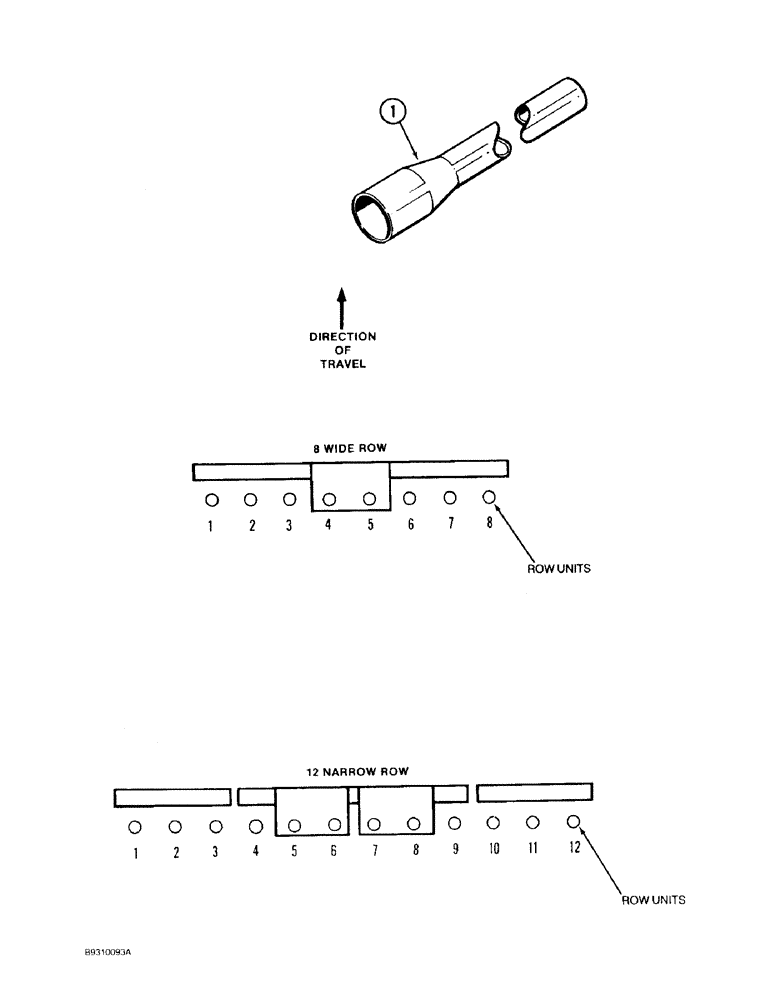

Запчасти Case IH 950 (9C-28) - SEED DELIVERY TUBE, 8 ROW WIDE, 12 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

58238C2

TUBE

- seed delivery, 58 inch long, flared end, soft

1шт.

1

546541R3

TUBE

- seed delivery, 100 foot long, rigid

1шт.

REF: #1A - 546541R3 TUBE,100 FOOT COIL WILL NO LONGER BE PROVIDED. NEW TUBE 130979A2 ( 195 INCHES LONG ) WILL FIT ALL APPLICATIONS.

1шт.

1

130979A1

TUBE

- seed delivery, 195 inch long, flared end, rigid

1шт.

1973256C1

TUBE

- seed delivery, 162 inch, No. 1, order 546541R3 or 130979A1 8 ROW WIDE

1шт.

1337536C1

TUBE,17.45 - 28.5 mm OD, 3300 mm Length

- seed delivery, 130 inch, No. 2, order 546541R3 or 130979A1 8 ROW WIDE

1шт.

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 3, order 546541R3 or 130979A1 8 ROW WIDE

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 4, order 58238C2 8 ROW WIDE

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 5, order 58238C2 8 ROW WIDE

1шт.

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 6, order 546541R3 or 130979A1 8 ROW WIDE

1шт.

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 119 inch, No. 7, order 546541R3 or 130979A1 8 ROW WIDE

1шт.

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 8, order 546541R3 or 130979A1 8 ROW WIDE

1шт.

1973256C1

TUBE

- seed delivery, 162 inch, No. 1, order 546541R3 or 130979A1 12 ROW NARROW

1шт.

1337535C1

TUBE,17.45 - 28.5 mm OD, 3165 mm Length

- seed delivery, 125 inch, No. 2, order 546541R3 or 130979A1 12 ROW NARROW

1шт.

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 3, order 546541R3 or 130979A1 12 ROW NARROW

1шт.

1337526C1

TUBE,17.45 - 28.5 mm OD, 1770 mm Length

- seed delivery, 70 inch, No. 4, order 546541R3 or 130979A1 12 ROW NARROW

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 5, order 58238C2 12 ROW NARROW

1шт.

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 6, order 58238C2 12 ROW NARROW

1шт.

1337520C1

TUBE,17.45 - 28.5 mm OD, 1065 mm Length

- seed deiivery, 42 inch, No. 7, order 58238C2 12 ROW NARROW

1шт.

1277733C1

TUBE,17.45 - 28.5 mm OD, 940 mm Length

- seed delivery, 37 inch, No. 8, order 58238C2 12 ROW NARROW

1шт.

1337524C1

TUBE,17.45 - 28.5 mm OD, 1510 mm Length

- seed delivery, 59 inch, No. 9, order 546541R3 12 ROW NARROW

1шт.

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 10, order 546541R3 or 130979A1 12 ROW NARROW

1шт.

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 119 inch, No. 11, order 546541R3 or 130979A1 12 ROW NARROW

1шт.

1337538C1

TUBE,17.45 - 28.5 mm OD, 3960 mm Length

- seed delivery, 156 inch, No. 12, order 546541R3 or 130979A1 12 ROW NARROW

1шт.
