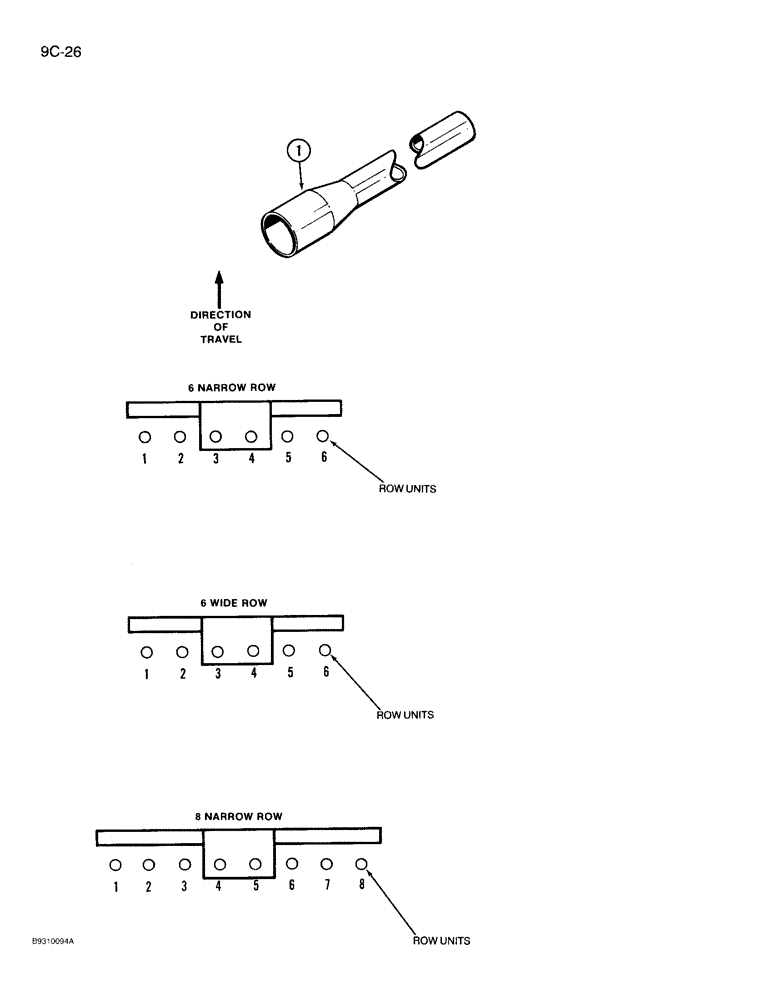

Запчасти Case IH 950 (9C-26) - SEED DELIVERY TUBE, 6 ROW NARROW, 6 ROW WIDE, 8 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

58238C2

TUBE

- seed delivery, 58 inch long, flared end, soft

1шт.

1

546541R3

TUBE

- seed delivery, 100 foot long, rigid

1шт.

REF: #1A - 546541R3 TUBE,100 FOOT COIL WILL NO LONGER BE PROVIDED. NEW TUBE 130979A2 ( 195 INCHES LONG ) WILL FIT ALL APPLICATIONS.

1шт.

1

130979A1

TUBE

- seed delivery, 195 inch long, flared end,rigid

1шт.

1279792C1

TUBE,17.45 - 28.5 mm OD, 2560 mm Length

- seed delivery, 101 inch, No. 1, order 546541R3 or 130979A1 6 ROW NARROW

1шт.

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 2, order 546541R3 or 130979A1 6 ROW NARROW

1шт.

1337518C1

TUBE,17.45 - 28.5 mm OD, 1010 mm Length

- seed delivery, 40 inch, No. 3, order 58238C2 6 ROW NARROW

1шт.

1337517C1

TUBE,17.45 - 28.5 mm OD, 970 mm Length

- seed delivery, 38 inch, No. 4, order 58238C2 6 ROW NARROW

1шт.

1337523C1

TUBE,17.45 - 28.5 mm OD, 1430 mm Length

- seed delivery, 56 inch, No. 5, order 58238C2 6 ROW NARROW

1шт.

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 6, order 546541R3 or 130979A1 6 ROW NARROW

1шт.

1337536C1

TUBE,17.45 - 28.5 mm OD, 3300 mm Length

- seed delivery, 130 inch, No. 1, order 546541R3 or 130979A1 6 ROW WIDE

1шт.

1337528C1

TUBE,17.45 - 28.5 mm OD, 1990 mm Length

- seed delivery, 78 inch, No. 2, order 546541R3 or 130979A1 6 ROW WIDE

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 3, order 58238C2 6 ROW WIDE

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 4, order 58238C2 6 ROW WIDE

1шт.

1337527C1

TUBE,17.45 - 28.5 mm OD, 1820 mm Length

- seed delivery, 72 inch, No. 5, order 546541R3 or 130979A1 6 ROW WIDE

1шт.

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 119 inch, No. 6, order 546541R3 or 130979A1 6 ROW WIDE

1шт.

1337536C1

TUBE,17.45 - 28.5 mm OD, 3300 mm Length

- seed delivery, 130 inch, No.1, order 546541R3 or 130979A1 8 ROW NARROW

1шт.

1337531C1

TUBE,17.45 - 28.5 mm OD, 2490 mm Length

- seed delivery, 98 inch, No. 2, order 546541R3 or 130979A1 8 ROW NARROW

1шт.

1337525C1

TUBE,17.45 - 28.5 mm OD, 1650 mm Length

- seed delivery, 65 inch, No. 3, order 546541R3 or 130979A1 8 ROW NARROW

1шт.

1337517C1

TUBE,17.45 - 28.5 mm OD, 970 mm Length

- seed delivery, 38 inch, No. 4, order 58238C2 8 ROW NARROW

1шт.

1337519C1

TUBE,17.45 - 28.5 mm OD, 1040 mm Length

- seed delivery, 41 inch, No. 5, order 58238C2 8 ROW NARROW

1шт.

1337523C1

TUBE,17.45 - 28.5 mm OD, 1430 mm Length

- seed delivery, 56 inch, No. 6, order 58238C2 8 ROW NARROW

1шт.

1337530C1

TUBE,17.45 - 28.5 mm OD, 2260 mm Length

- seed delivery, 89 inch, No. 7, order 546541R3 or 130979A1 8 ROW NARROW

1шт.

1337534C1

TUBE,17.45 - 28.5 mm OD, 3010 mm Length

- seed delivery, 119 inch, No. 8, order 546541R3 or 130979A1 8 ROW NARROW

1шт.
