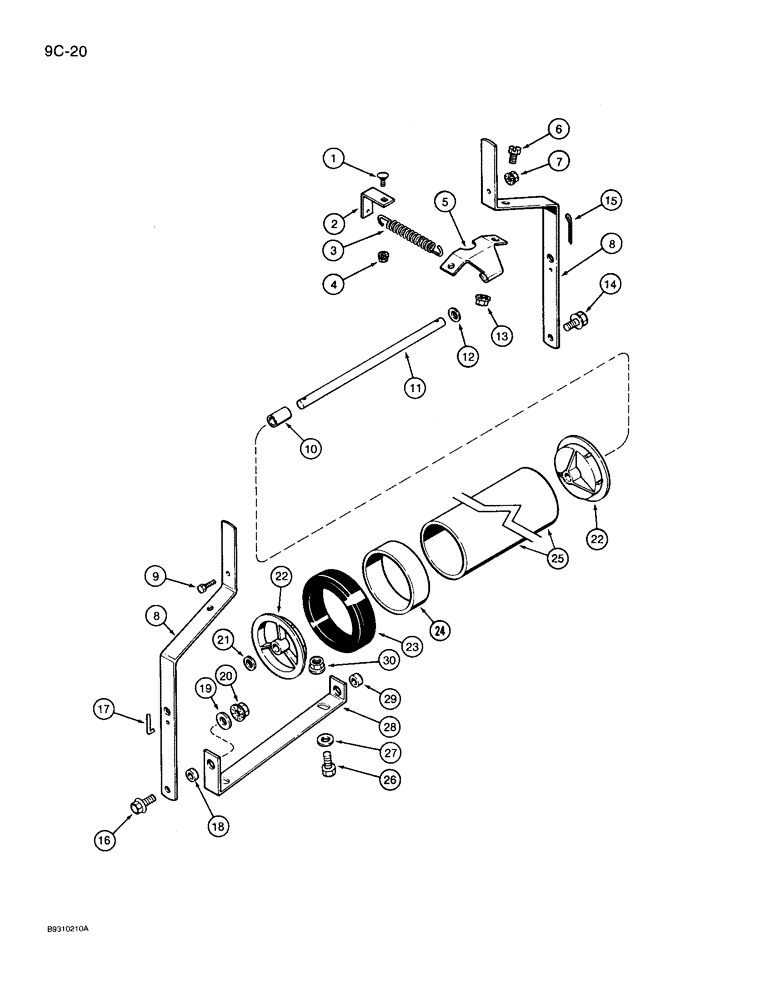

Запчасти Case IH 950 (9C-20) - SEED MODULE CUTOFF WHEEL, ALL RIGID & VERTICAL FOLD, 11 & 15 ROW SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
412-612
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 3/4", Gr 2
BOLT - carriage, 3/8 NC x 3/4 inch, grade 2
1шт.
2
141212C1
SUPPORT
- spring bracket
1шт.
3
650949C1
VALVE SPRING
SPRING - anchor
1шт.
4
231-5146
FLANGE NUT,3/8"-16
1шт.
5
141209C1
CLIP
- spring anchor
1шт.
6
135270
SERRATED SCREW,5/16" - 18 x 3/4"
BOLT - hex slotted truss, 5/16 NC x 3/4 inch
2шт.
7
231-5146
FLANGE NUT,3/8"-16
1шт.
8
141210C1
SUPPORT
ARM - wheel support
2шт.
9
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
1шт.
10
1980757C2
SPACER
- cutoff wheel
1шт.
11
548810R1
AXLE
- cutoff wheel
1шт.
12
495-81177
WASHER,21/32" x 1" x .030"
- flat, 21/32 x 1 x 1/32 inch
1шт.
13
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
2шт.
14
409-7816
BOLT,Hex Flg, 1/2" - 13 x 1", Spcl
- hex serrated flange, 1/2 NC x 1 inch
1шт.
16
409-7820
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
1шт.
17
548365R2
PIN
- axle retaining
1шт.
18
548363R1
BUSHING
- pivot
1шт.
19
495-81025
WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk
- flat, 17/32 x 1-1/4 x 11/64 inch
2шт.
20
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
2шт.
21
495-81177
WASHER,21/32" x 1" x .030"
- flat, 21/32 x 1 x 1/32 inch
1шт.
22
539670R1
RIM
- cutoff wheel
2шт.
23
141019C3
TYRE/TIRE
TIRE - cutoff wheel
1шт.
24
1261565C1
SPACER
- cutoff wheel
1шт.
25
546337R2
SLEEVE
- cutoff wheel, 8-7/8 inch long (6 row, 12 row left-hand side and 11 row solid row crop)
1шт.
25
548809R2
SLEEVE
- cutoff wheel, 11-7/8 inch long (8 row, 12 row right-hand side and 15 row solid row crop)
1шт.
27
495-81021
WASHER,17/32" x 1" x .120"
- flat, 17/32 x 1 x 7/64 inch
2шт.
28
141167C2
SUPPORT
- cutoff wheel
1шт.
29
548363R1
BUSHING
- pivot
1шт.
30
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
2шт.
Выбрано товаров: 31
