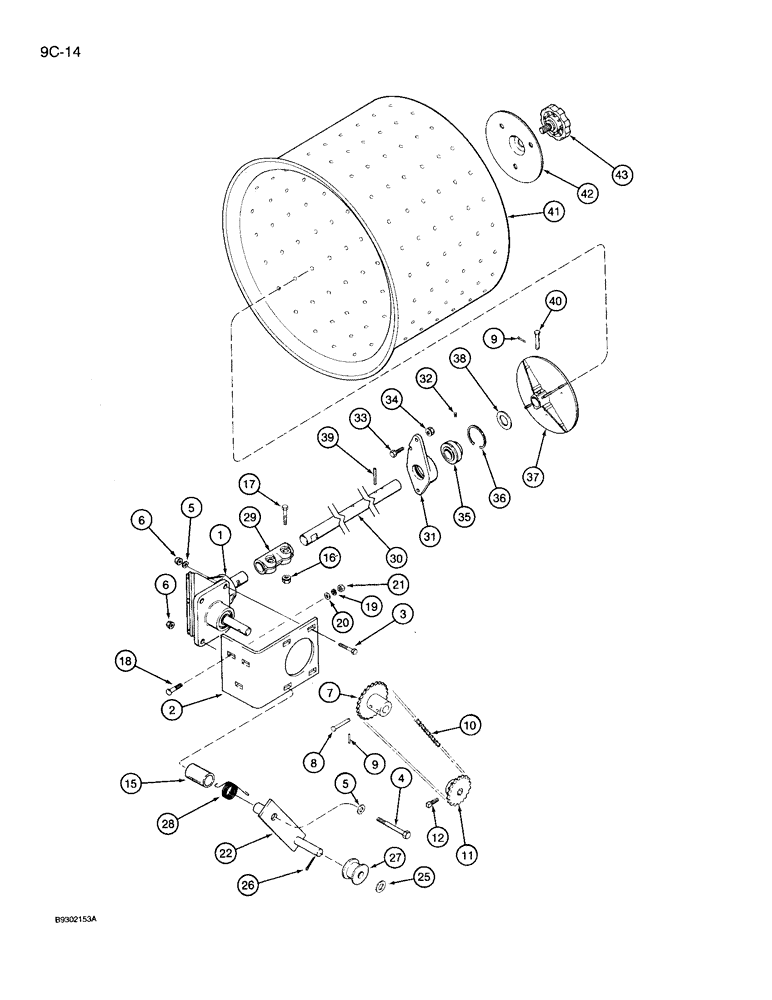

Запчасти Case IH 950 (9C-14) - SEED DRUM DRIVE (09) - CHASSIS/ATTACHMENTS

1

1250704C91

HOUSING

B0X - gear, seed drum, see page 9C-19

1шт.

2

1986102C1

BRACKET

- gearbox mounting

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

5

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

4шт.

6

231-5146

FLANGE NUT,3/8"-16

4шт.

7

127168A1

SPROCKET ASSY.

SPROCKET - 24 tooth

1шт.

8

439-1430

HEADED PIN,1/4" x 1 7/8", G2

PIN - clevis, 1/4 x 1-7/8 inch

1шт.

9

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

10

1547686C1

CHAIN (AG)

CHAIN ASSEMBLY - drum drive, not available for service, use 111 links from bulk chain 1790D and 1 connecting link 241-2314, see below

1шт.

1790D

CHAIN (AG)

CHAIN - 10 foot roll

1шт.

1301D

CHAIN LINK

LINK - chain, connecting

1шт.

11

103681A1

SPROCKET

- drive, 18 tooth

1шт.

12

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - square head set, 3/8 NC x 3/4 inch

1шт.

15

127030A1

TUBE,10.34 mm ID, 15.88 mm OD

SPACER - pivot

1шт.

16

231-5146

FLANGE NUT,3/8"-16

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

18

412-616

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch

3шт.

19

492-11038

LOCK WASHER,3/8"

3шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

21

329-106

NUT,3/8"-16, G8

3шт.

24

1547684C2

BAR ASSY.

ARM - tightener

1шт.

25

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat 17/32 x 3/4 x 7/64 inch

1шт.

26

432-1216

COTTER PIN,3/16" x 1"

1шт.

27

1277726C1

ROLLER,48mm OD x 34mm L

- chain

1шт.

28

1277854C2

SPRING

- idler

1шт.

29

1250703C2

CLAMP

- drum shaft

1шт.

30

137132C3

SHAFT

- drum

1шт.

31

147365C1

BEARING HOUSING,36 mm ID x 66 mm OD x 24.5 mm

- bearing

1шт.

32

484-2254

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - slotted headless set, 1/4 NC x 1/4 inch

1шт.

33

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

35

149306C91

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

1шт.

36

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

37

137129C1

HOUSING

- drum drive

1шт.

38

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

39

38-31628

PIN,1/4" x 1 3/4", Coiled

1шт.

40

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

PIN - headed, 1/4 x 1-3/4 inch

1шт.

41

REF

INSTRUCTION

DRUM - seed, see page 9C-17

1шт.

42

141509C1

CAP

PLATE - drum end

1шт.

43

141681C2

HANDLE

KNOB - drum

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll, use to make item 10

1шт.

241-2314

CHAIN LINK

LINK - connecting, chain, use to make items 10

1шт.
