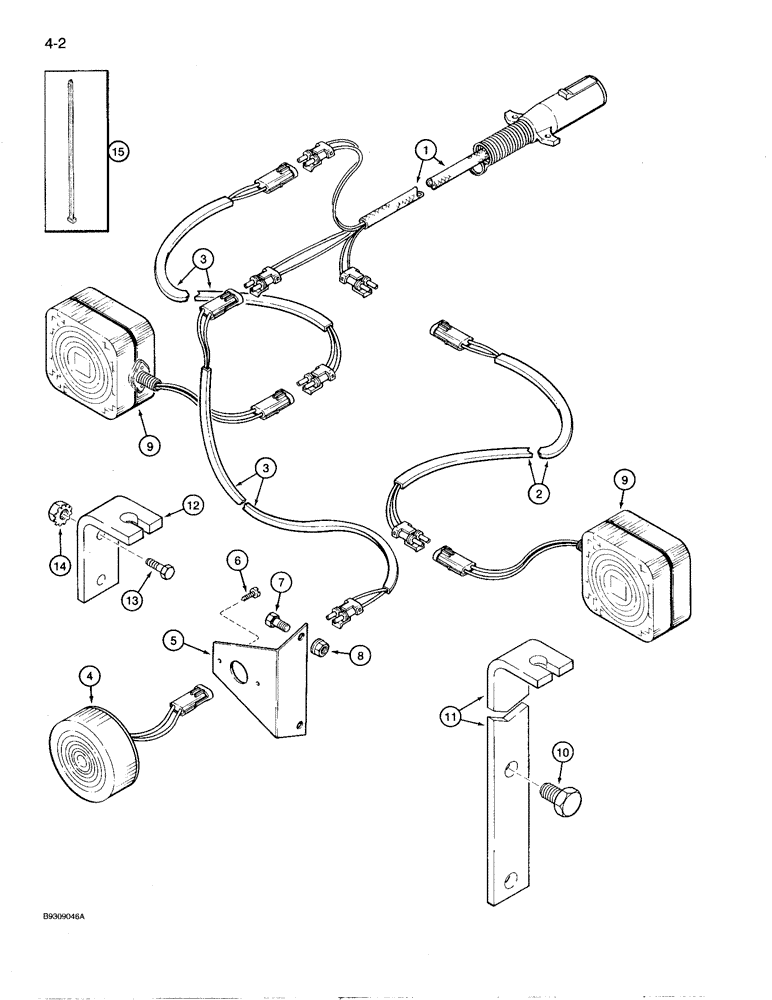

Запчасти Case IH 950 (4-02) - LIGHTING SYSTEM, 6 ROW WIDE, ENDWISE TRANSPORT (04) - ELECTRICAL SYSTEMS

1

92093C2

HARNESS

- main

1шт.

2

92096C1

CABLE ASSY.

HARNESS - lamp

1шт.

3

92095C1

HARNESS

- lamps

2шт.

4

91986C91

LIGHT

LAMP ASSEMBLY - tail, parts list page 4-11

1шт.

5

1333942C1

BRACKET

- tail lamp mounting

1шт.

6

280-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - self-tapping, hex head, No. 10-16 x 5/8 inch

2шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

for SMV bracket mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

8

231-5146

FLANGE NUT,3/8"-16

for SMV bracket mounting Flg, USR, 3/8"-16

2шт.

9

91913C91

LIGHT

LAMP ASSEMBLY - warning/turn signal, parts list page 4-11

2шт.

10

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

2шт.

11

1333941C2

BAR

BRACKET - lamp support, right-hand

1шт.

12

1333943C2

BAR

BRACKET - lamp support, left-hand

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

15

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - retaining, 28-1/4 inch

6шт.
