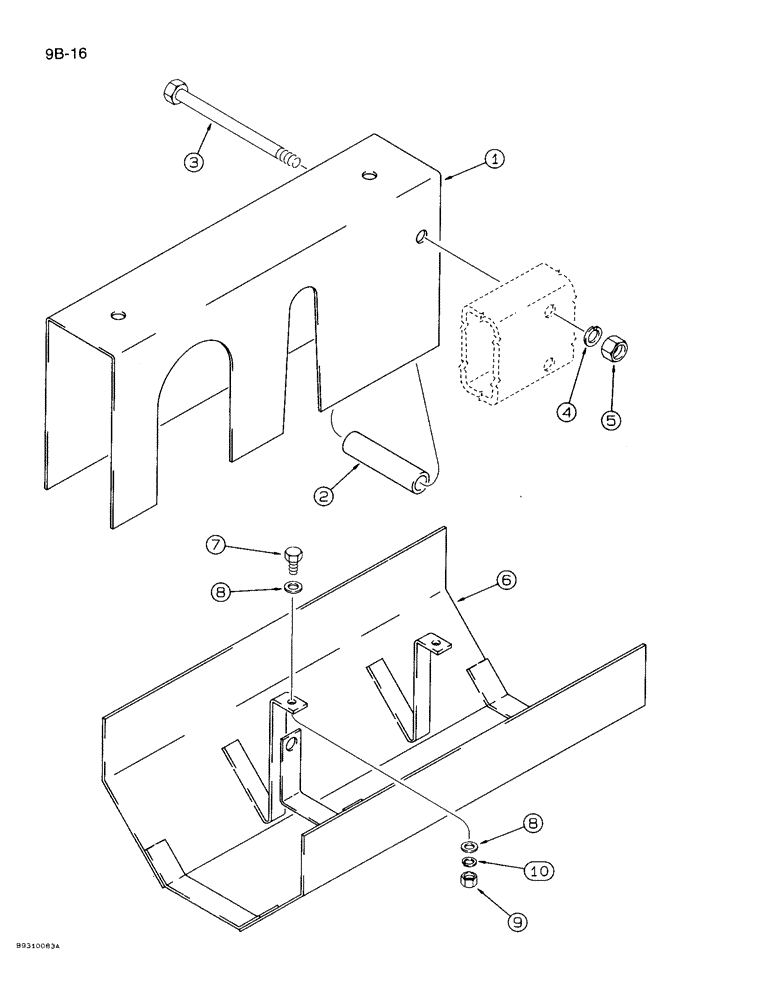

Запчасти Case IH 950 (9B-16) - DRIVE WHEEL CHAIN GUARD, TRANSMISSION DRIVE GUARD (09) - CHASSIS/ATTACHMENTS

1

147233C2

SUPPORT

GUARD - chain, left-hand (Shown)

1шт.

1

147234C2

SUPPORT

GUARD - chain, right-hand

1шт.

2

147232C1

SPACER

- chain guard

4шт.

3

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

6

1995586C1

SHIELD

- drive TRANSMISSION GUARD

1шт.

7

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch TRANSMISSION DRIVE GUARD

2шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") Transmission Drive Guard 1/4", SAE

4шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex lock, 1/4 inch NC TRANSMISSION DRIVE GUARD

2шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Transmission drive guard 1/4"

2шт.
