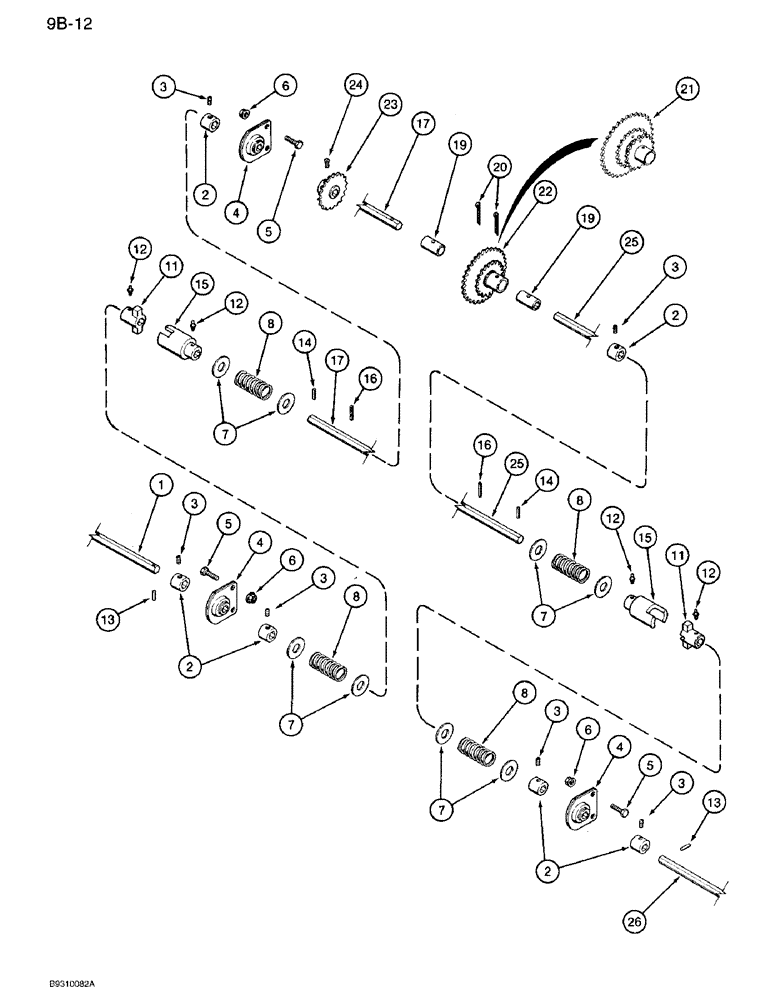

Запчасти Case IH 950 (9B-12) - SECONDARY SEED DRIVE, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

140936C2

BAR

- outer left-hand, hex, 5/8 x 71-1/4 inch, 8 row wide

1шт.

1

141502C2

BAR

- outer left-hand, hex, 5/8 x 86-39/64 inch, 12 row narrow

1шт.

2

147338C1

SPACER

- collar, locking

6шт.

3

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket head, 3/8 x 3/8 inch

6шт.

4

141242C91

BEARING,16mm ID

- hanger

2-1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4-2шт.

6

231-5146

FLANGE NUT,3/8"-16

4-2шт.

7

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 1/8 inch

8шт.

8

141863C1

SPRING

- wing connector

4шт.

11

137241C5

BLOCK DRIVER

DRIVER - wing connecting

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

13

138-2009

PIN,3/16" x 1", Coiled

2шт.

14

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

15

137240C4

SOCKET

HUB - socket drive connecting

2шт.

16

23670R1

PIN,6.35mm OD x 34.92mm L, Coiled

2шт.

17

140934C2

BAR

- inner left-hand, hex, 5/8 x 76-13/32 inch (8 row wide)(Shown)

1шт.

17

141504C2

BAR

- inner left-hand, hex, 5/8 x 87-13/32 inch (12 row narrow)

1шт.

19

137204C2

SPACER

BUSHING - shear pin

2шт.

20

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

21

1547034C2

SPROCKET ASSY.

SPROCKET - final output, 20, 34, and 18 tooth, 8 row wide

1шт.

22

90906C1

SPROCKET ASSY.

SPROCKET - final output, 20 and 34 tooth, 12 row narrow

1шт.

23

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 tooth, 12 row narrow

1шт.

24

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch

1шт.

25

140935C2

BAR

- inner right-hand, hex, 5/8 x 69-1/64 inch, 8 row wide

1шт.

25

141505C3

BAR

- inner right-hand, hex, 5/8 x 80 inch, 12 row narrow

1шт.

26

140937C2

BAR

- outer right-hand, hex, 5/8 x 61-27/64 inch, 8 row wide

1шт.

26

141502C2

BAR

- outer right-hand, hex, 5/8 x 86-39/64 inch, 12 row narrow

1шт.
