(9B-10) - SECONDARY SEED DRIVE, 6 ROW WIDE

Запчасти Case IH 950 (9B-10) - SECONDARY SEED DRIVE, 6 ROW WIDE (09) - CHASSIS/ATTACHMENTS

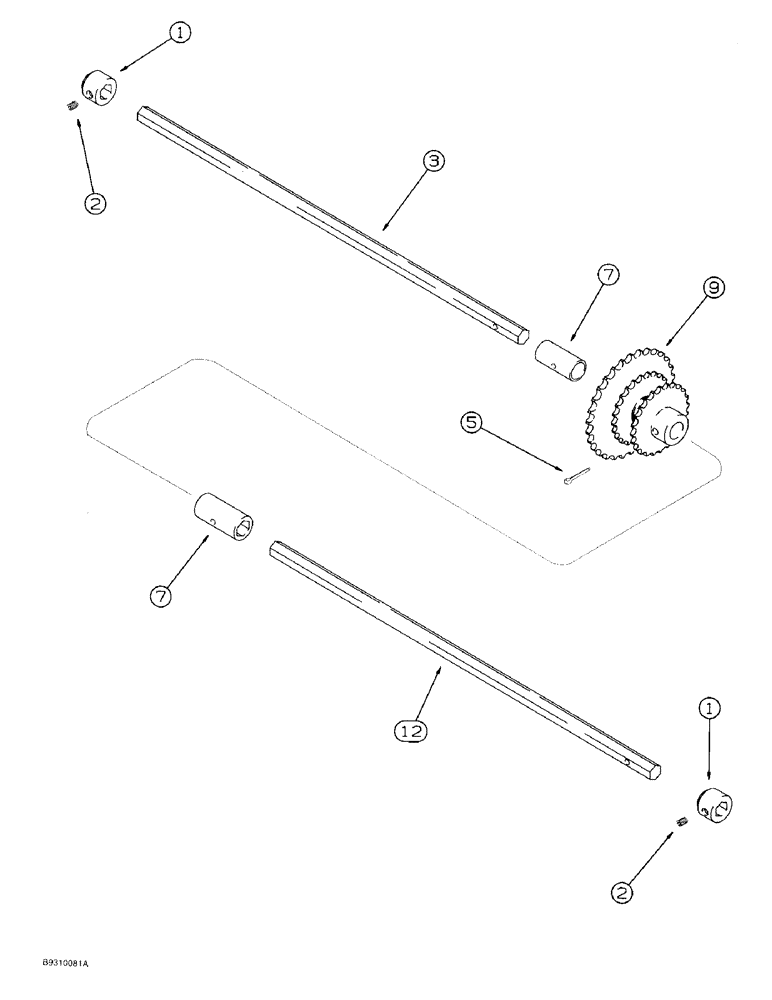

Схема запчастей Case IH 950 - (9B-10) - SECONDARY SEED DRIVE, 6 ROW WIDE (09) - CHASSIS/ATTACHMENTS
9
2
7
2
12
5
1
7
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

147338C1

SPACER

- collar, locking

2шт.

2

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket head, 3/8 NC x 1/2 inch

2шт.

3

137212C1

BAR

- drive, left-hand, hex, 5/8 x 109-31/64 inch

1шт.

5

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

7

137204C2

SPACER

BUSHING - shear pin

2шт.

9

1547034C2

SPROCKET ASSY.

SPROCKET - final output, 20, 34, and 18 tooth

1шт.

12

137210C1

BAR

- drive, right-hand, hex, 5/8 x 92-11/64 inch

1шт.
