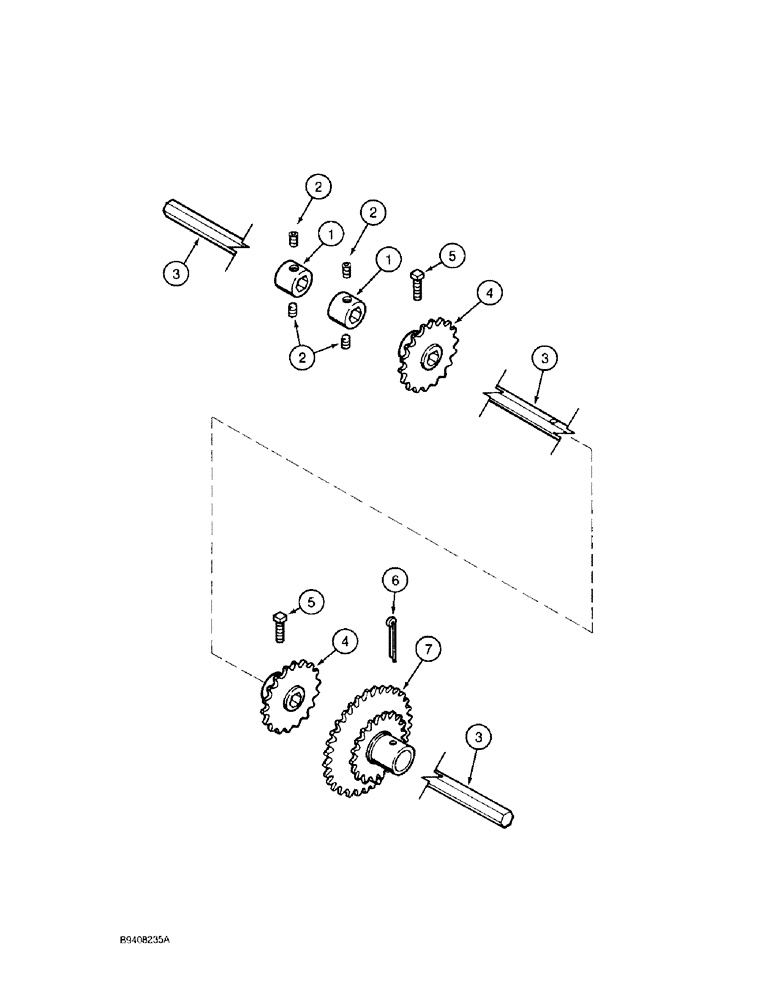

Запчасти Case IH 950 (9B-09A) - SECONDARY SEED DRIVE, 11 ROW AND 15 ROW SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS

1

141572C2

COLLAR

HUB - sprocket

2шт.

2

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - set, hex socket head, 3/8 NC x 3/4 inch

4шт.

3

132425A1

BAR

- drive, hex, 7/8 x 176-3/4 inch (4490 mm) long, 11 row

1шт.

3

132424A1

BAR

- drive, hex, 7/8 x 236-3/4 inch (6014 mm) long, 15 row

1шт.

4

103681A1

SPROCKET

- drum drive, 18 tooth

2шт.

5

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch

4шт.

6

432-1636

COTTER PIN,1/4" x 2 1/4"

Pin, Split (Cotter), 1/4" x 2 1/4"

1шт.

7

90906C2

DRIVE SPROCKET

SPROCKET - final output, 20 and 34 tooth

1шт.
