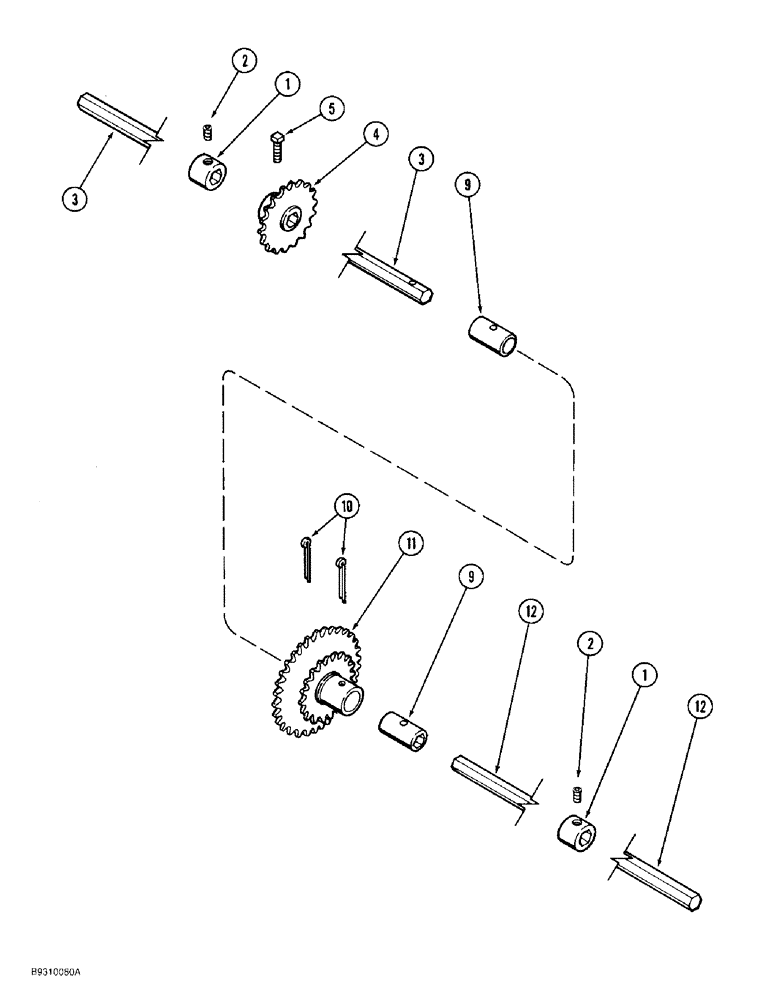

Запчасти Case IH 950 (9B-08) - SECONDARY SEED DRIVE, 6 AND 8 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

147338C1

SPACER

- collar, locking

2шт.

2

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket head, 3/8 NC x 1/2 inch

2шт.

3

137213C1

BAR

- drive, left-hand, hex, 5/8 x 1 13-49/64 inch, 6 row narrow

1шт.

3

1279455C1

SHAFT

BAR - drive, left-hand, hex 5/8 x 144-19/64 inch, 8 row narrow

1шт.

4

90909C1

SPROCKET ASSY.

SPROCKET - drum drive, 18 tooth

1шт.

5

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch

1шт.

9

137204C2

SPACER

BUSHING - shear pin

2шт.

10

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

2шт.

11

90906C2

DRIVE SPROCKET

SPROCKET - final output, 20 and 34 tooth

1шт.

12

134151C1

BAR

- drive, right-hand, hex, 5/8 x 69-31/64 inch, 8 row narrow

1шт.

12

141452C1

BAR

- drive, right-hand, hex, 5/8 x 37-31/64 inch, 6 row narrow

1шт.
