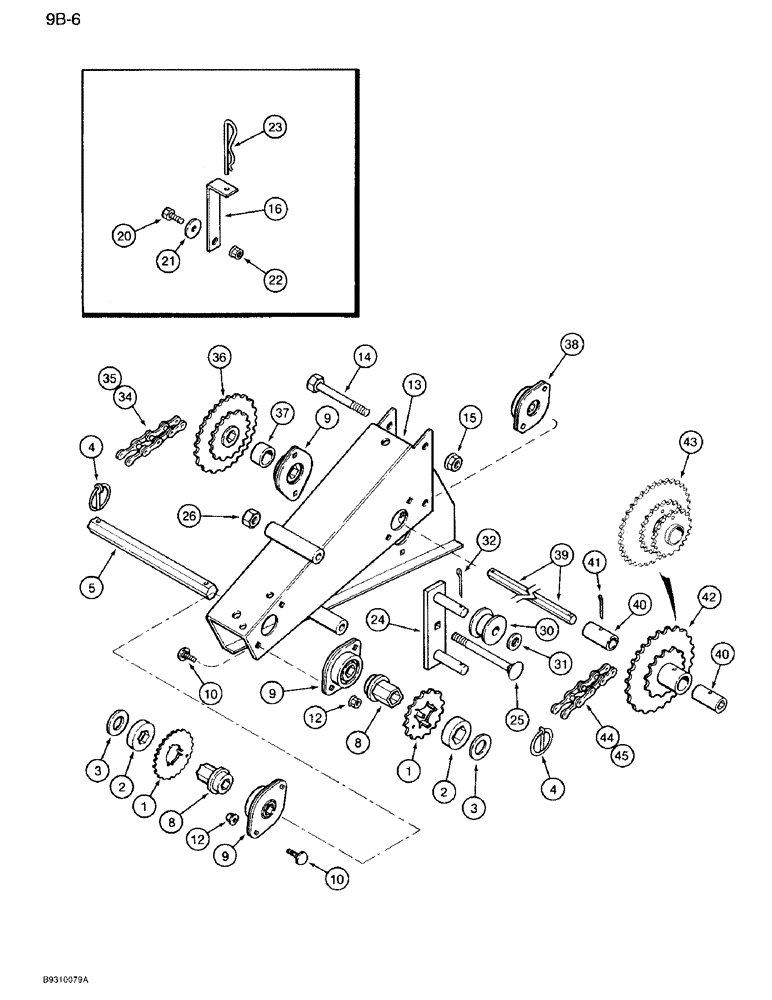

Запчасти Case IH 950 (9B-06) - SEED DRIVE SPEED CHANGE, ALL PLANTERS EXCEPT SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS

1

90897C1

DRIVE SPROCKET

SPROCKET - hex bore, 20 tooth

1шт.

1

90898C1

DRIVE SPROCKET

SPROCKET - hex bore, 22 tooth

1шт.

1

90899C1

DRIVE SPROCKET

SPROCKET - hex bore, 24 tooth

1шт.

1

90900C1

DRIVE SPROCKET

SPROCKET - hex bore, 28 tooth

1шт.

1

90901C1

DRIVE SPROCKET

SPROCKET - hex bore, 30 tooth

1шт.

1

90902C1

DRIVE SPROCKET

SPROCKET - hex bore, 32 tooth

1шт.

1

90903C1

DRIVE SPROCKET

SPROCKET - hex bore, 34 tooth

1шт.

2

140932C1

SPACER

- sprocket

1шт.

3

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

1шт.

4

A30338

PIN

- self locking, 1/4 inch

2шт.

5

134142C1

BAR

SHAFT - drive, short, secondary

1шт.

8

140931C1

HUB

- sprocket

2шт.

9

134158C91

FLANGED BEARING

- ball, sealed, hex, 7/8 inch

3шт.

10

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

8шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

13

137203C4

SUPPORT

- speed change

1шт.

14

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch

2шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

16

141781C1

BRACKET

- sprocket storage

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, 12 row narrow

1шт.

21

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch, 12 row narrow

1шт.

22

231-5146

FLANGE NUT,3/8"-16

12 row narrow Flg, USR, 3/8"-16

1шт.

23

591107R1

COTTER PIN

- cotter, hair

1шт.

24

96032C1

BAR ASSY.

SHAFT - chain speed change idler

2шт.

25

133-5

CARRIAGE BOLT,Sq Nk, 1/2" - 13, LH Thd x 5 1/2", Gr 5

BOLT, CARRIAGE, , LH Thread Short NK, 1/2"-13 x 5 1/2", G5

2шт.

26

125-10007

NUT,1/2"-13, G5, LH

- hex, 1/2 inch NC, LH thread

2шт.

30

1277726C1

ROLLER,48mm OD x 34mm L

- idler

4шт.

31

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

32

432-1216

COTTER PIN,3/16" x 1"

4шт.

34

90916C1

CHAIN (AG)

CHAIN ASSEMBLY - input speed change, No. 40, use one 241-1314 connecting link, item 35, and 109 links from 1790D bulk chain, see below

1шт.

35

241-1314

CHAIN LINK

LINK - connecting, input speed change chain, No. 40

1шт.

1790D

CHAIN (AG)

CHAIN - 10 foot roll

1шт.

36

90907C1

DRIVE SPROCKET

SPROCKET - primary input, 20 and 32 tooth

1шт.

37

144812C1

SPACER

- double sprocket, 43/64 inch

1шт.

38

134157C91

BALL BEARING,15.88mm ID

- ball, sealed, hex, 5/8 inch

1шт.

39

REF

INSTRUCTION

BAR - drive, hex, 5/8 inch (See secondary seed drives)

1шт.

40

137204C2

SPACER

BUSHING - shear pin

2шт.

41

132-361

COTTER PIN,3/16" x 2 1/2"

PIN, SPLIT (COTTER), 3/16" x 2 1/2"

2шт.

42

90906C1

SPROCKET ASSY.

SPROCKET - final output, 20 and 34 tooth, 6, 8, and 12 row narrow

1шт.

43

1547034C2

SPROCKET ASSY.

SPROCKET - final output, 20,34, and 18 tooth, 6 and 8 row wide

1шт.

44

90916C1

CHAIN (AG)

CHAIN ASSEMBLY - output speed change, No. 40, use one 241-1314 connecting link, item 46, and 87 links from 1790D bulk chain, see below

1шт.

45

241-1314

CHAIN LINK

LINK - connecting, output speed change chain, No. 40

1шт.

1790D

CHAIN (AG)

CHAIN - 10 foot roll

1шт.
