Запчасти Case IH 950 (9B-03A) - PRIMARY SEED DRIVE, 11 ROW AND 15 ROW SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS

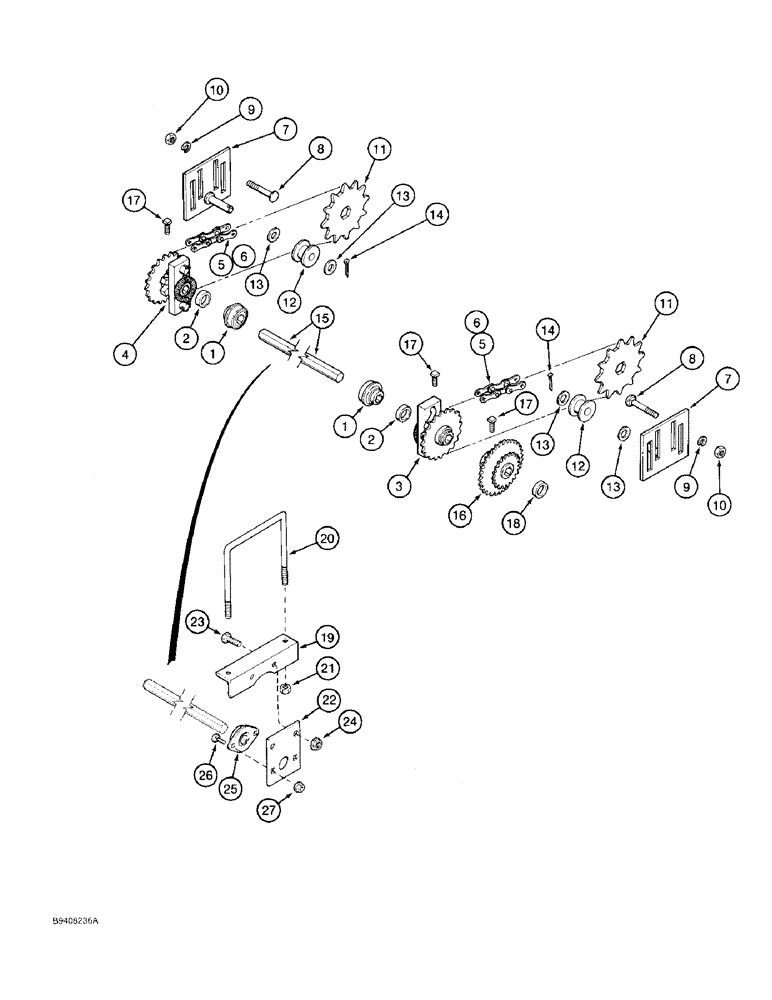

Схема запчастей Case IH 950 - (9B-03A) - PRIMARY SEED DRIVE, 11 ROW AND 15 ROW SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS
18
20
1
6
11
13
14
7
21
17
11
9
2
27
7
25
23
17
24
17
13
8
10
13
12
19
13
9
6
5
5
10
15
1
2
3
22
8
16
12
4
14
26

Артикул

Название

Примечание

Количество

1

134181C91

BALL BEARING,1.218" ID x 2.125" OD x 1"

- ball, primary drive

2шт.

2

1277812C1

SPACER

- drive shaft

2шт.

3

1277925C91

RATCHET

SPROCKET ASSEMBLY - left-hand drive ratchet, parts list page 9B-11

1шт.

4

1277926C91

PINION

SPROCKET ASSEMBLY - right-hand drive ratchet, parts list page 9B-11

1шт.

5

1277739C91

CHAIN (AG)

CHAIN ASSEMBLY - primary wheel drive, No. 2050, use one 1277928C91 connecting link, item 6, and 45 links from 569089R91 bulk chain, see below

2шт.

6

1277928C91

LINK

- connecting, primary wheel drive chain, No. 2050

1-2шт.

7

1279011C2

LARGE PLATE

PLATE - wheel drive idler

2шт.

8

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

1277736C1

SPROCKET

- drive wheel, 12 tooth

2шт.

12

1277726C1

ROLLER,48mm OD x 34mm L

- idler, drive chain

2шт.

13

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

14

432-1216

COTTER PIN,3/16" x 1"

2шт.

15

132421A1

BAR

- primary drive, hex, 7/8 x 216 inch (5486 mm) long, 15 row

1шт.

15

132423A1

BAR

- primary drive, hex, 7/8 x 156 inch (3962 mm) long, 11 row

1шт.

16

90907C1

DRIVE SPROCKET

SPROCKET - speed change, 20 and 32 tooth

1шт.

17

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

6шт.

18

144812C1

SPACER

- double sprocket

1шт.

19

137482C3

ANGLE

- bearing

1-2шт.

20

1250813C1

U-BOLT

- 5/8 inch NC, angle mounting

1-2шт.

21

425-1010

NUT,5/8"-11, G5

2-4шт.

22

1254171C1

PLATE

- bearing support

1-2шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2-4шт.

24

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2-4шт.

25

134158C91

FLANGED BEARING

- ball

2-3шт.

26

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4-6шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4-6шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - No. 2050, 10 foot roll

1шт.

Выбрано товаров: 29
