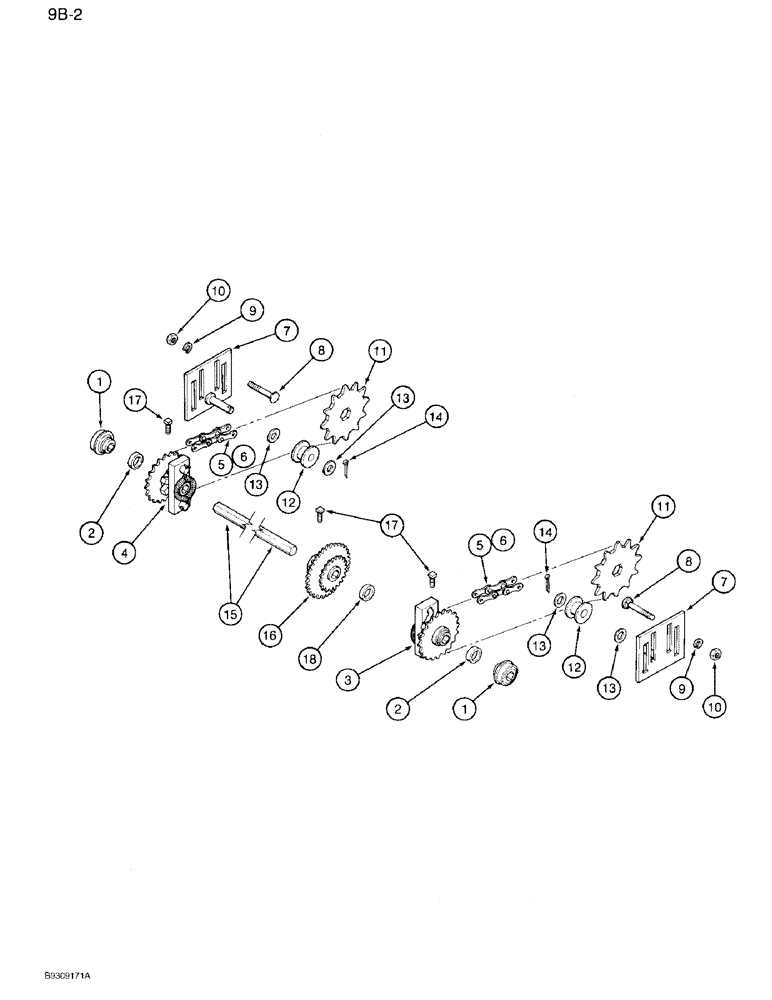

Запчасти Case IH 950 (9B-02) - PRIMARY SEED DRIVE, ALL PLANTERS EXCEPT SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS

1

134181C91

BALL BEARING,1.218" ID x 2.125" OD x 1"

- ball, primary drive

2шт.

2

1277812C1

SPACER

- drive shaft

2шт.

3

1277925C91

RATCHET

SPROCKET ASSEMBLY - left-hand drive ratchet, parts list page 9B-11

1шт.

4

1277926C91

PINION

SPROCKET ASSEMBLY - right-hand drive ratchet, parts list page 9B-11

1шт.

5

1277739C91

CHAIN (AG)

CHAIN ASSEMBLY - primary wheel drive, No. 2050, use one 1277928C91 connecting link, item 6, and 45 links from 569089R91 bulk chain, see below

2шт.

6

1277928C91

LINK

- connecting, primary wheel drive chain, No. 2050

1-2шт.

7

1279011C2

LARGE PLATE

PLATE - wheel drive idler

2шт.

8

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

1277736C1

SPROCKET

- drive wheel, 12 tooth

2шт.

12

1277726C1

ROLLER,48mm OD x 34mm L

- idler, drive chain

2шт.

13

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

14

432-1216

COTTER PIN,3/16" x 1"

2шт.

15

1254282C1

BAR

- primary drive, hex, 7/8 x 118-7/64 inch, 6 row narrow

1шт.

15

134153C1

BAR

- primary drive, hex, 7/8 x 142-3/4 inch, 6 row wide and 8 row wide

1шт.

15

134152C1

BAR

- primary drive hex, 7/8 x 170-35/64 inch, 8 row narrow and 12 row narrow

1шт.

16

90907C1

DRIVE SPROCKET

SPROCKET - speed change, 20 and 32 tooth

1шт.

17

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square, cup point, 1/2 NC x 3/4 inch

6шт.

18

144812C1

SPACER

- double sprocket

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - No. 2050, 10 foot roll

1шт.
