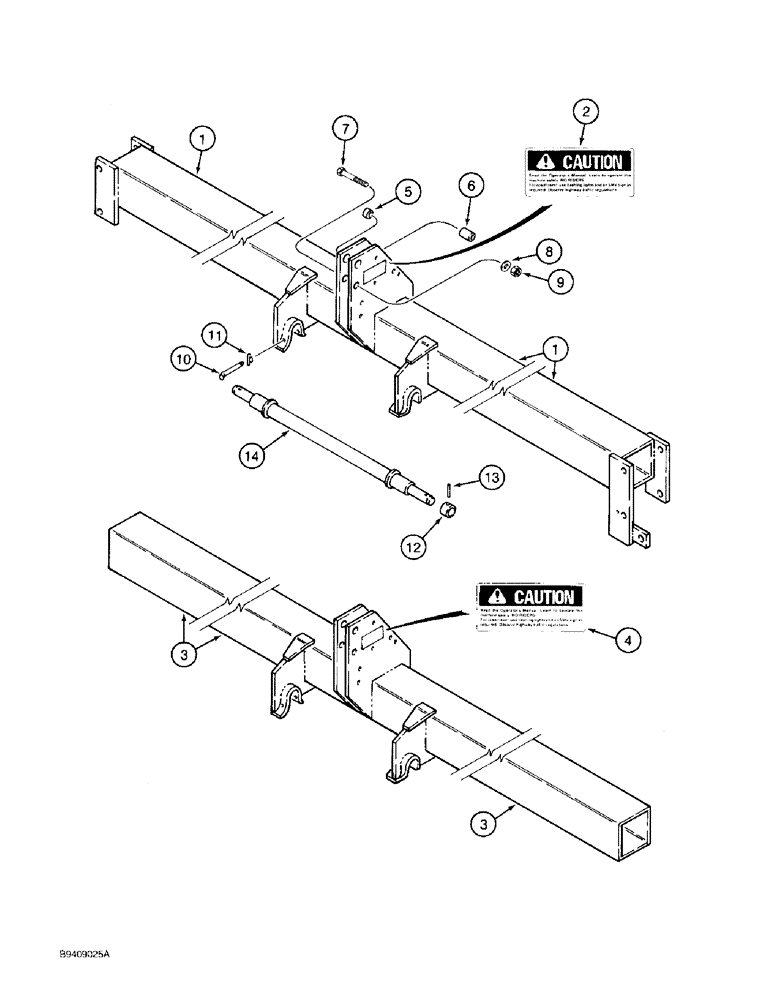

Запчасти Case IH 950 (9A-03A) - MAIN FRAME, 11 ROW AND 15 ROW SOLID ROW CROP (09) - CHASSIS/ATTACHMENTS

1

133081A1

FRAME

ASSEMBLY - main, with decal (11 row)

1шт.

2

1254170C1

DECAL

- Caution, no riders, see page 9F-11

1шт.

3

133082A1

FRAME

ASSEMBLY - main, with decal (15 row)

1шт.

4

1254170C1

DECAL

- Caution, no riders, see page 9F-11

1шт.

5

97772C1

BUSHING

- mast, used with category II hitch

2шт.

6

462425R2

SPACER

- mast

1шт.

7

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

- hex, 3/4 NC x4inch

1шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

9

425-1012

NUT,3/4"-10, G5

1шт.

10

141292C1

PIN

- hitch

2шт.

11

A33497

LINCH PIN,4.76mm OD Pin

PIN - Klik

2шт.

12

401233R1

COLLAR

- thrust

2шт.

13

38-33240

PIN,1/2" x 2 1/2", Coiled

2шт.

14

137084C1

SPINDLE

- hitch, Category II, if used

1шт.

14

137083C1

SPINDLE

- hitch, Category III, if used

1шт.

14

1980778C1

SPINDLE

- hitch, Category III with Category II spread, if used

1шт.
