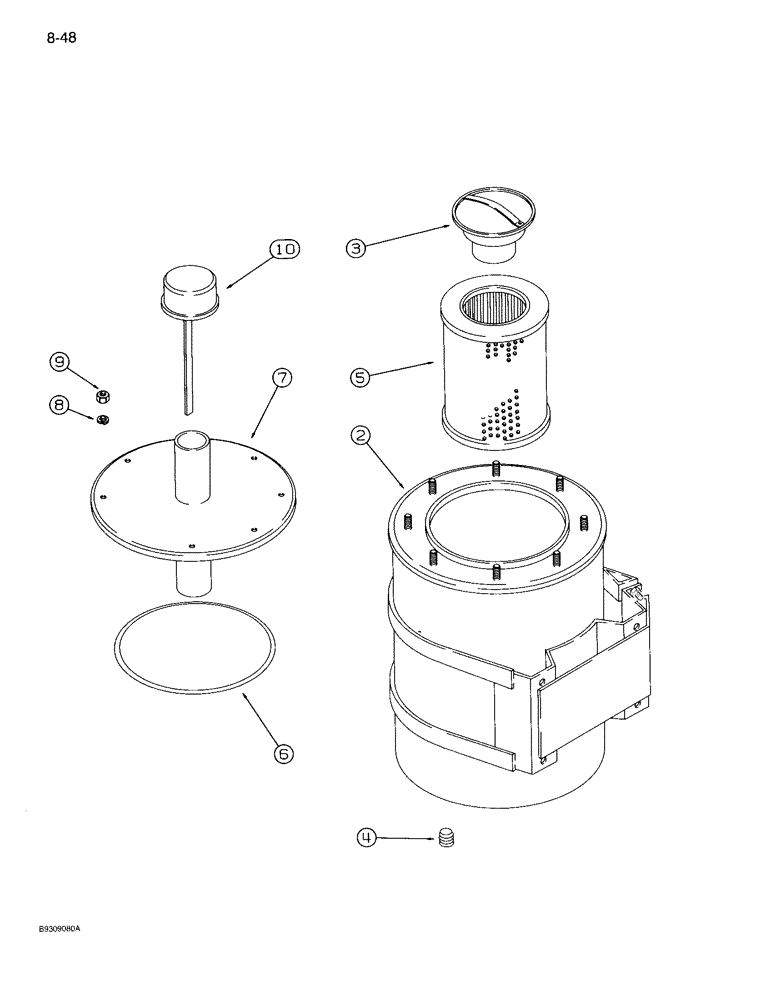

Запчасти Case IH 950 (8-48) - HYDRAULIC RESERVOIR, 12 ROW NARROW (08) - HYDRAULICS

156395C91

RESERVOIR

ASSEMBLY - hydraulic

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - reservoir (Order 156395C91)

1шт.

3

386121R92

VALVE

ASSEMBLY - relief

1шт.

4

444699

PLUG,Hex Soc, 3/8"-18

- hex socket, 3/8-18

1шт.

5

528493R3

HYDRAULIC OIL FILTER

ELEMENT - reservoir

1шт.

6

22760R1

O-RING,6.725" ID x 7.275" OD x 0.275"

- 6-3/4 ID x 1/4 inch

1шт.

7

163646C91

COVER

- reservoir

1шт.

8

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

10

567521R91

CAP

DIPSTICK - reservoir

1шт.
