Запчасти Case IH 950 (8-44) - BLOWER HYDRAULIC PUMP, 1OOO RPM PTO, 12 ROW NARROW (08) - HYDRAULICS

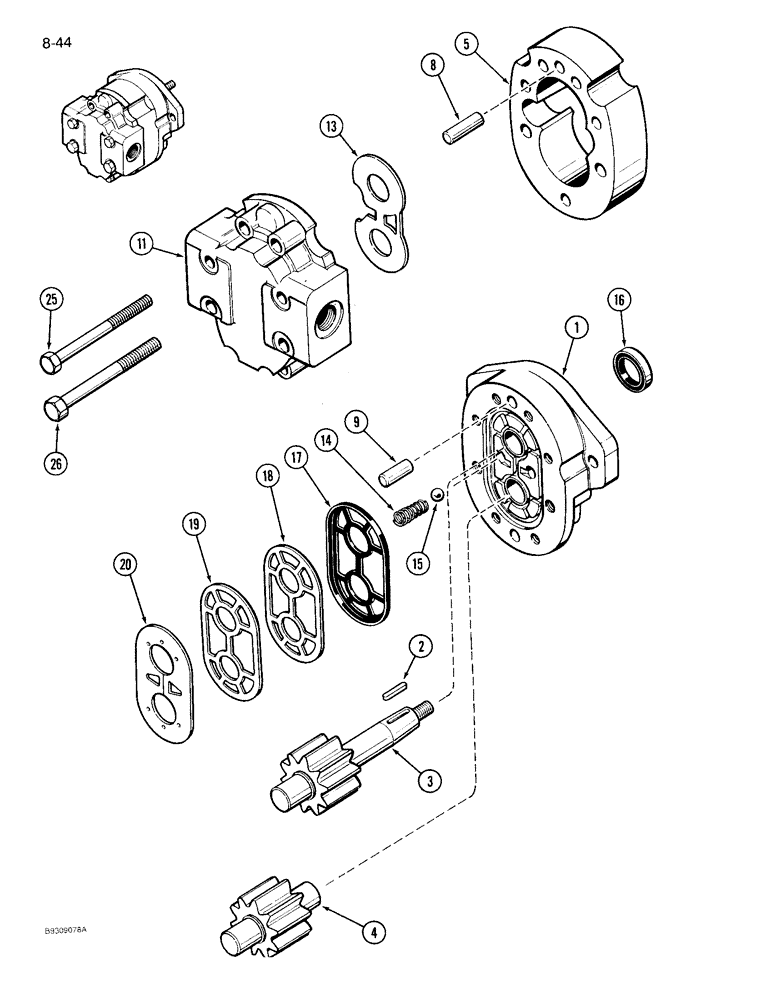

Схема запчастей Case IH 950 - (8-44) - BLOWER HYDRAULIC PUMP, 1OOO RPM PTO, 12 ROW NARROW (08) - HYDRAULICS
1
11
18
19
16
17
5
8
3
4
25
2
13
26
14
20
9
15

Артикул

Название

Примечание

Количество

1949282C1

REMAN-HYD PUMP

PUMP ASSEMBLY - hydraulic, remanufactured (North America only)

1шт.

1949283C1

CORE-HYDRAULIC PUMP

RETURN NUMBER - pump assembly (Use this part number to return pump core for credit)

1шт.

142482C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic (New)

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - front

1шт.

2

177192C1

KEY

- shaft, 1/4 square x 1-7/32 inch

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - drive

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - idler

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - dowel, 1/2 x 1-1/4 inch

2шт.

9

NSS

NOT SOLD SEPARAT

PIN - dowel, 1/2 x 1-1/2 inch

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - back

1шт.

55295C91

SEAL KIT

SERVICE KIT - pump

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

14

381230R1

SPRING

- check ball

1шт.

15

17013R1

BALL,13/32" Dia

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

17

NSS

NOT SOLD SEPARAT

DIAPHRAGM - pump

1шт.

18

NSS

NOT SOLD SEPARAT

GASKET - protector

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - diaphragm

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT - hex, 7/16-14 x 4-1/4 inch

4шт.

25

NSS

NOT SOLD SEPARAT

BOLT - hex, 7/16-14 x 5 inch

2шт.

26

NSS

NOT SOLD SEPARAT

BOLT - hex, 1/2-13 x 5 inch

2шт.

Выбрано товаров: 23
