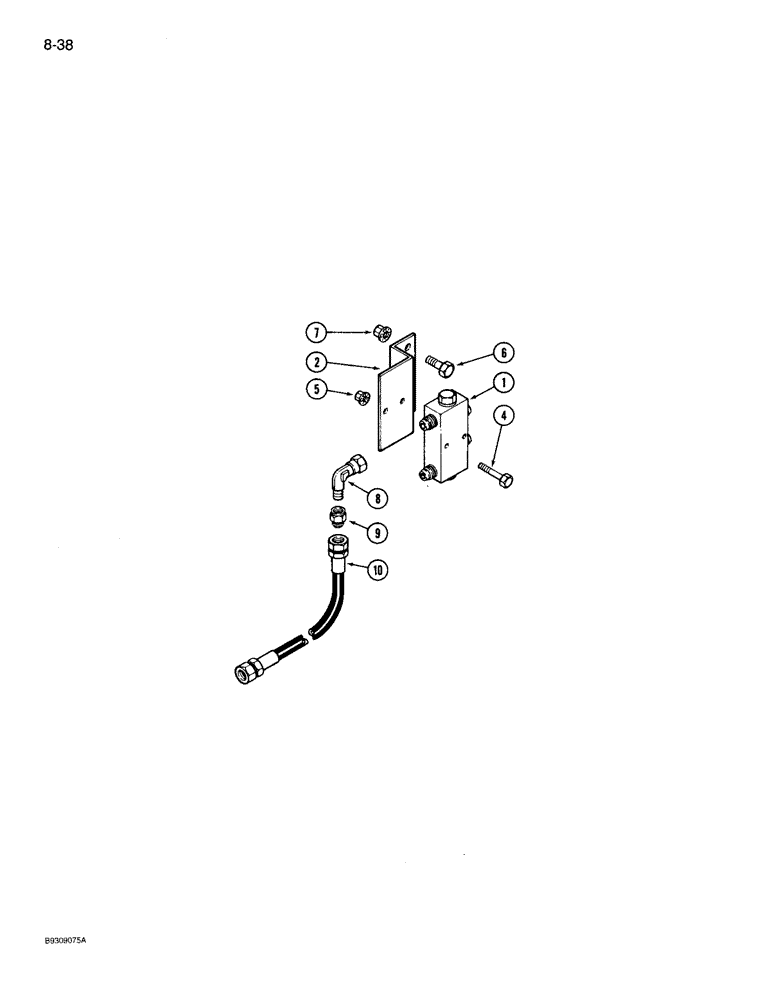

Запчасти Case IH 950 (8-38) - ALTERNATING CHECK VALVE ATTACHMENT (08) - HYDRAULICS

1

142864C95

VALVE

ASSEMBLY - check, alternating (See Page 8-41)

1шт.

2

1264387C1

SUPPORT

- check valve

1шт.

4

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

4

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

8

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree swivel, 7/8-14 inch flared

2шт.

9

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - 3/4-16 male x 7/8-14 inch female flared

4шт.

10

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

2шт.
