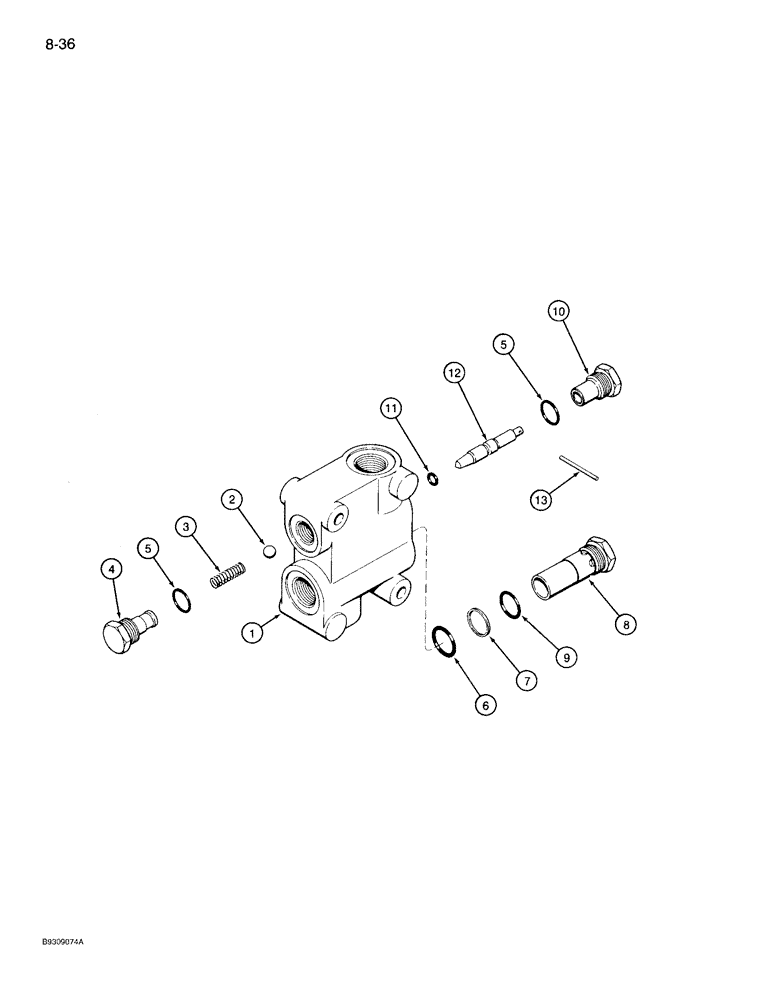

Запчасти Case IH 950 (8-36) - FLOW CONTROL VALVE, 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS

127743C91

VALVE

ASSEMBLY - flow control

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order 127743C91)

1шт.

2

17016R1

BALL,1/2" Dia

1шт.

3

262253C1

SPRING

- ball

1шт.

4

59060C1

PLUG

- check ball

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32 inch

2шт.

6

362796R1

O-RING,0.924" ID x 0.103" Width

- 15/16 ID x 3/32 inch

1шт.

7

378985R2

BACK-UP RING

RING - backup

1шт.

8

382928R91

VALVE

ASSEMBLY - cushion relief

1шт.

9

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

- 7/8 ID x 3/32 inch

1шт.

10

127744C1

RETAINER,7/8" - 14 x 30mm, UNC

RETAINER - adjusting screw

1шт.

11

145637C1

O-RING,0.237" ID x 0.103", 70 Duro

- 15/64 ID x 7/64 inch

1шт.

12

127745C1

ADJUSTMENT SCREW,3/8" - 24 x 59.18mm

- adjusting

1шт.

13

17165R1

LOCK PIN,1/8" x 1 3/4", Slotted

Pin, 1/8" x 1 3/4", Slotted

1шт.
