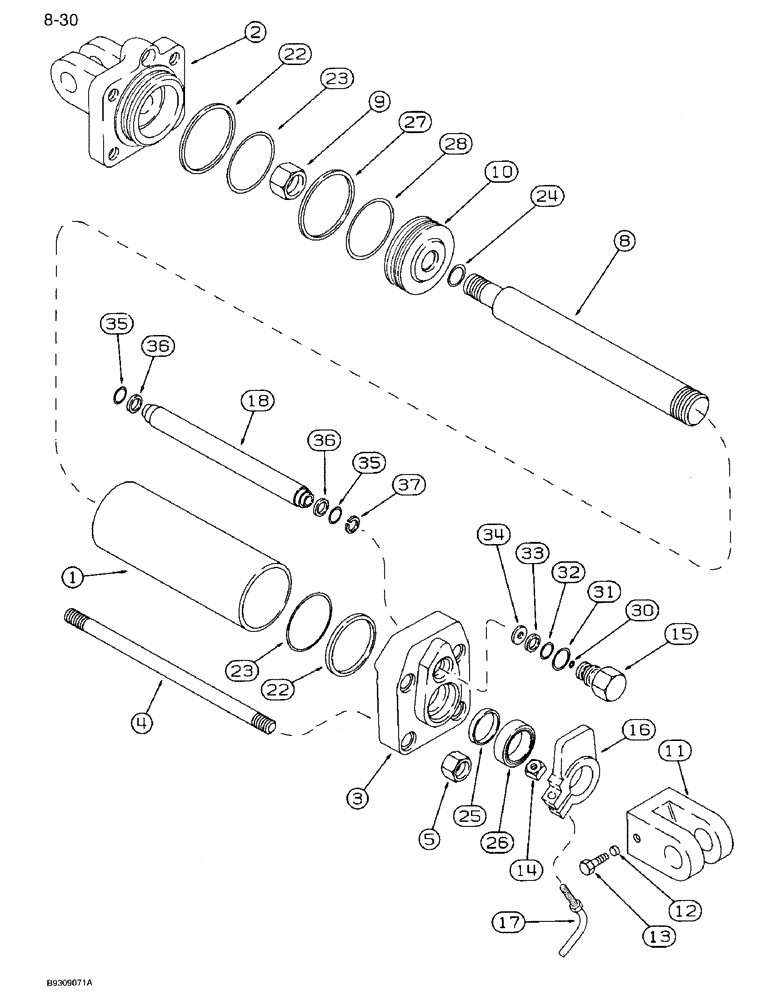

Запчасти Case IH 950 (8-30) - ASSIST WHEEL HYDRAULIC CYLINDER, 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1263474C91
CYLINDER ASSY.
CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke (Replaces 145352C91)
2шт.
1
NSS
NOT SOLD SEPARAT
BODY - cylinder (Order cylinder assembly)
1шт.
2
145354C1
HEAD
- rear, cylinder
1шт.
3
1255096C1
END
HEAD - front, cylinder
1шт.
4
145250C1
BOLT,5/8" - 11 x 345mm
STUD - tie, cylinder
4шт.
5
425-1010
NUT,5/8"-11, G5
4шт.
8
1272813C1
ROD
- piston
1шт.
9
20268R1
LOCK NUT,7/8"-14, GC
NUT - hex lock, 7/8 inch NF, grade 8
1шт.
10
145422C2
PISTON
- cylinder
1шт.
11
1282366C1
RAM FORK
CLEVIS - rod, cylinder
1шт.
12
145453C1
PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon
PAD - insert
1шт.
13
413-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
1шт.
14
1266705C1
SQUARE NUT
- square, 5/16 inch NC
1шт.
15
1260968C91
VALVE
- stop, limit (Includes Ref. 30 through 34)
1шт.
16
224581C3
ARM
VALVE - trip, cylinder
1шт.
17
1263435C91
ADJUSTMENT SCREW
- valve, L type
1шт.
18
371211R2
TUBE,0.573" ID, 0.748" OD, 10.963" Length
- transfer
1шт.
79978C2
SEAL KIT
KIT - seal
1шт.
22
NSS
NOT SOLD SEPARAT
RING - backup
2шт.
23
NSS
NOT SOLD SEPARAT
O-RING - cylinder head
2шт.
24
NSS
NOT SOLD SEPARAT
O-RING - piston rod
1шт.
25
NSS
NOT SOLD SEPARAT
SEAL - rod
1шт.
26
NSS
NOT SOLD SEPARAT
WIPER - rod
1шт.
27
NSS
NOT SOLD SEPARAT
SEAL - piston
1шт.
28
NSS
NOT SOLD SEPARAT
O-RING - piston
1шт.
1272597C91
KIT
- seal, valve and transfer tube
1шт.
30
21590R1
O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro
- 3/16 ID x 1/16 inch
1шт.
31
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
32
238-6115
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
1шт.
33
224301C1
BACK-UP RING
RING - backup
1шт.
34
NSS
NOT SOLD SEPARAT
WASHER - backup
1шт.
35
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
2шт.
36
371218R1
BACK-UP RING
RING - backup
2шт.
37
492-11038
LOCK WASHER,3/8"
1шт.
Выбрано товаров: 34
