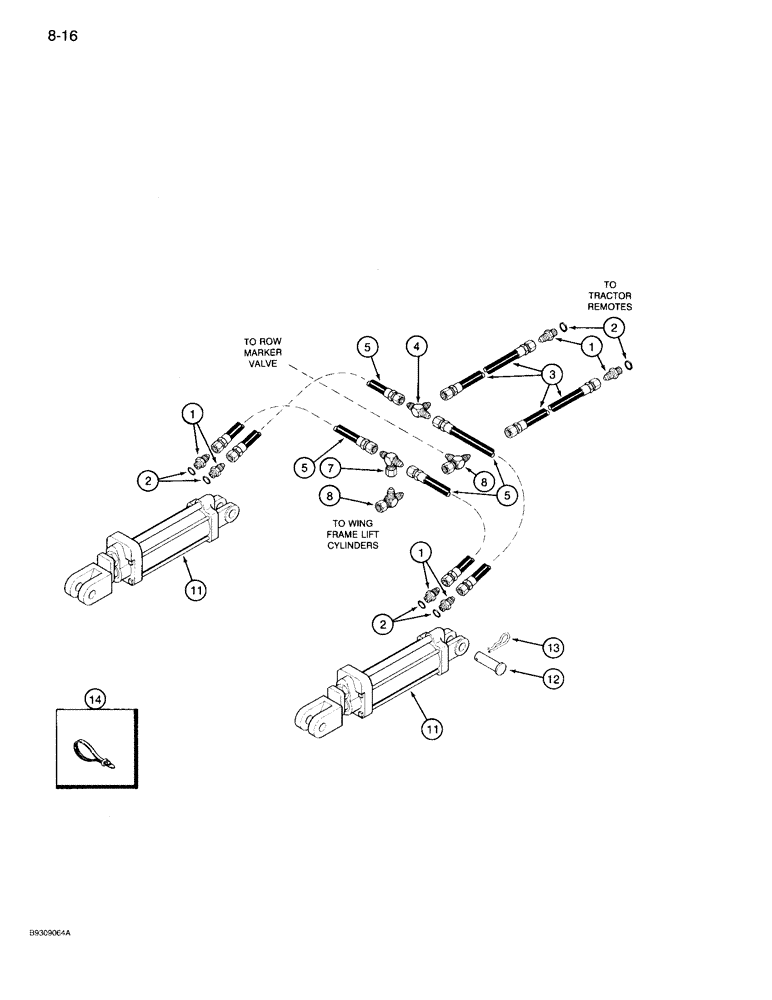

Запчасти Case IH 950 (8-16) - ASSIST WHEEL HYDRAULIC SYSTEM, 8 ROW WIDE AND 12 ROW NARROW, VERTCAL FOLD (08) - HYDRAULICS

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

6шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

90877C1

HYDRAULIC HOSE

HOSE - 60 inch long, assist wheel cylinder

2шт.

4

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare

2шт.

5

90879C1

HYDRAULIC HOSE,12.70 mm ID x 2030.00 mm, SAE 100R1

Assist Wheel Cylinder (8 Row Wide) 12.70 mm ID x 2030.00 mm, SAE 100R1

4шт.

5

90876C1

HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1

Assist Wheel Cylinder (12 Row Narrow) 12.70 mm ID x 2540.00 mm, SAE 100R1

4шт.

7

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- swivel, 1/2 inch tube

1шт.

8

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 1/2 inch tube, 90 degree swivel

2шт.

11

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - wheel, 2-1/2 bore x 8 inch stroke, shown, 8 row wide, (See Figure 8-26)

2шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - wheel, 3-1/2 bore x 8 inch stroke, 12 row narrow (See Figures 8-28 and 8-30)

2шт.

12

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed

4шт.

13

486830R1

COTTER PIN

PIN - cotter, hair, 3/16 inch

4шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

2шт.
