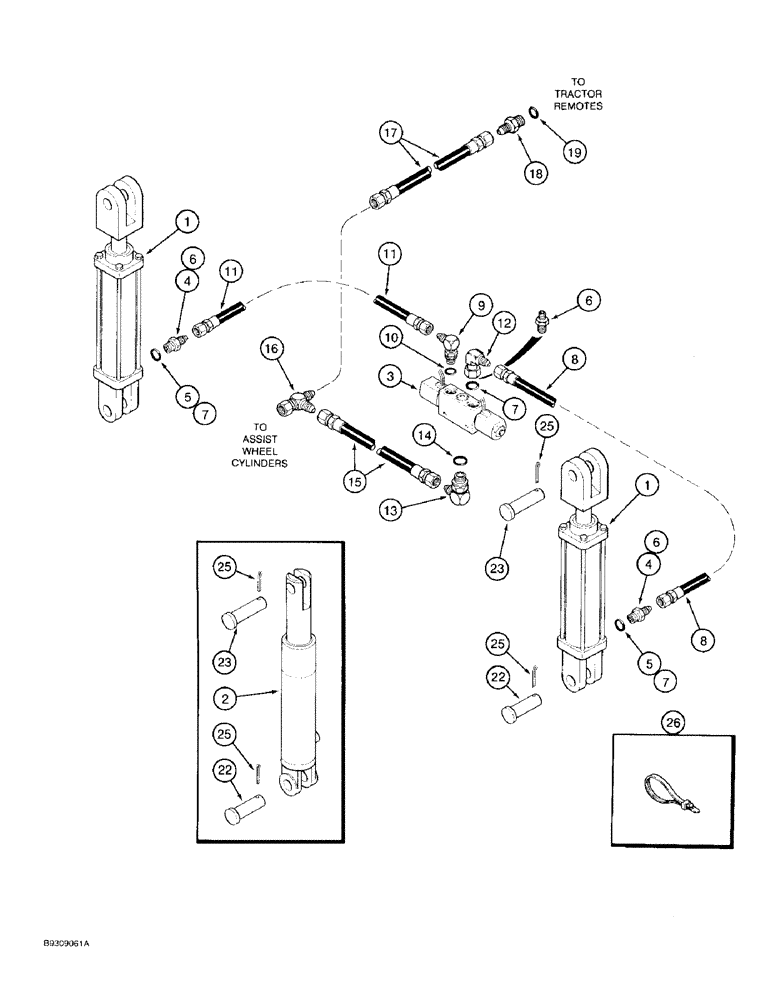

Запчасти Case IH 950 (8-10) - ROW MARKER HYDRAULIC SYSTEM, 8 ROW NARROW AND 6 ROW (08) - HYDRAULICS

1

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - marker (6 row narrow)(See Page 8-21)

2шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - marker (6 row wide and 8 row narrow) (See Pages 8-23 and 8-25)

2шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - marker (See Page 8-35)

1шт.

4

1263477C3

HYD CONNECTOR

RESTRICTOR ASSEMBLY - 9/16-18 flared x 3/4-16 inch O-ring boss (6 row narrow)

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 6 row narrow

2шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss (6 row wide and 8 row narrow)

3шт.

8

1264170C1

HYDRAULIC HOSE,6.40 mm ID x 3175.00 mm, SAE 100R1

HOSE - 125 inch long (6 row narrow)

1шт.

8

139655C2

HYDRAULIC HOSE

HOSE - 155 inch long (6 row wide and 8 row narrow)

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable, 9/16-18 flared x 9/16-18 inch O-ring boss

2шт.

11

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

HOSE - 105 inch long (6 row narrow)

1шт.

11

139655C2

HYDRAULIC HOSE

HOSE - 155 inch long (6 row wide and 8 row narrow)

1шт.

12

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 flare x swivel flare

1шт.

13

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 3/4-16 flared x 7/8-14 inch O-ring boss

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

90875C1

HYDRAULIC HOSE

HOSE - 29 inch long

1шт.

16

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, 3/4-16 inch flared

1шт.

17

90877C1

HYDRAULIC HOSE

HOSE - 60 inch long

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

439-11648

HEADED PIN,1" x 3", G2

PIN - headed, 1 x 3 inch

2шт.

23

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

2шт.

25

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

26

306132C1

CABLE TIE,14.5" L

STRAP - tie 14 in

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 6 row wide and 8 row narrow

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
