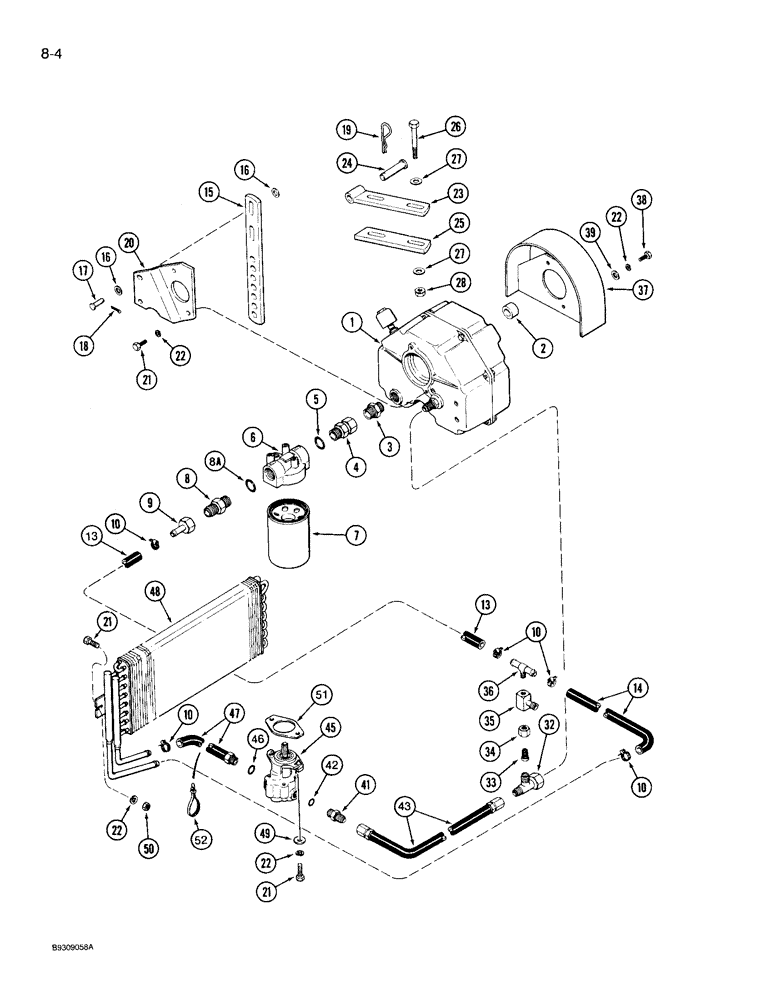

Запчасти Case IH 950 (8-04) - BLOWER PUMP HYDRAULIC SYSTEM, 54O RPM PTO, 6 AND 8 ROW (08) - HYDRAULICS

1

149367C91

PUMP

ASSEMBLY - hydraulic (See Page 8-43)

1шт.

2

119956C1

SPACER, RING

SPACER - hydraulic pump

1шт.

3

95729C1

CONNECTOR, ELEC

CONNECTOR - straight

1шт.

4

95728C1

ADAPTER

- filter

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

6

113464C91

FILTER

ASSEMBLY - hydraulic

1шт.

7

113465C1

FILTER

- hydraulic

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - 1-1/16-12 inch

1шт.

8a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

113452C1

TUBE

- connecting

1шт.

10

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, #06, .44/.78 Type F Worm

4шт.

13

NSS

NOT SOLD SEPARAT

HOSE - 1/2 x 25 inch (Cut from bulk hose 73199C1)

1шт.

14

59773C1

HYDRAULIC HOSE,12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

(Cut from bulk hose 73199C1) 12.70 mm ID x 3048.00 mm ID, SAE 100R6, SAE J517

1шт.

15

56774C1

BRACKET

- adjusting

1шт.

16

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

4шт.

17

16524B

HEADED PIN,7/16" x 1 1/4"

PIN - clevis

2шт.

18

432-1216

COTTER PIN,3/16" x 1"

2шт.

19

1978738C1

HAIR PIN COTTER

3/16"

1шт.

20

113414C3

PLATE

- pump mounting

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

1254128C1

STRAP

- retaining

1шт.

24

439-11044

HEADED PIN,5/8" x 2 3/4", G2

PIN - 5/8 x 2-3/4 inch

1шт.

25

56776C1

BAR

STRAP - retaining

1шт.

26

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

28

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

2шт.

32

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4 inch

1шт.

33

56781C1

ADAPTER

REDUCER - 1/4 to 1/2 inch tube

1шт.

34

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - flared tube, 3/4-16

1шт.

35

539794R91

VALVE

ASSEMBLY - flow control

1шт.

36

56782C91

TEE

- hose

1шт.

37

95713C1

SHIELD

ASSEMBLY - pump

1шт.

38

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

39

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 3/64") 3/8"

2шт.

41

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss

1шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

43

90876C1

HYDRAULIC HOSE,12.70 mm ID x 2540.00 mm, SAE 100R1

1шт.

45

1272056C92

HYDRAULIC MOTOR,7.05 CC

MOTOR ASSEMBLY - blower, seed module (See Page 8-47)

1шт.

45

1272056C92R

REMAN-HYD MOTOR

950 - CASE IH SEMI-MOUNTED PLANTER, N.A. Only

1шт.

45

1272056C92C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

47

90698C1

HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6

1шт.

48

1265677C1

OIL COOLER

COOLER - oil

1шт.

49

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

2шт.

50

425-106

NUT,3/8"-16, Cl 5

2шт.

51

1985956C1

GASKET

- motor

1шт.

52

306132C1

CABLE TIE,14.5" L

STRAP - retaining, 14 inch long

1шт.

73199C1

HOSE

- hydraulic, 1/2 inch (12.7 mm) ID, 50 foot (15,240 mm) roll

1шт.
