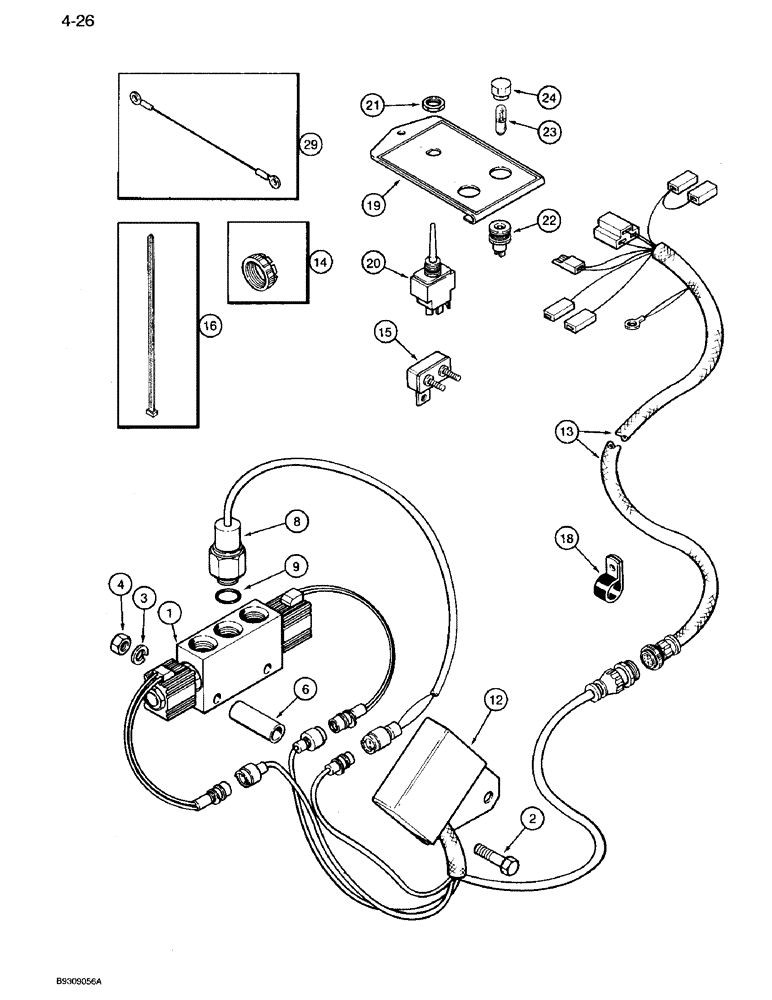

Запчасти Case IH 950 (4-26) - AUTO. SELECTOR VALVE SYS., 6 ROW WIDE, 8 ROW NARROW 8 ROW WIDE VERT. FOLD & 12 ROW NARROW VERT. FOLD (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

VALVE ASSEMBLY - marker (See Figure 8-34)

1шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

2

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

6

1250695C2

SPACER

- valve mounted, 12 Row Narrow only

2шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

12 Row Narrow only Hex, 3/8"-16 x 5", G5

2шт.

8

1547188C1

SWITCH

- pressure

1шт.

1547189C1

SWITCH

KIT - pressure switch conversion, 1900 to 1500 psi

1шт.

12

144911C3

CONTROL

- marker

1шт.

12

144911C4R

REMAN ELECT CONTROL

950 CASE IH SEMI-MOUNTED PLANTER, marker (11/93-), Reman for New PN 144911C3

1шт.

12

144911C4C

CORE-ELECTRONIC CONT

Return Number

1шт.

13

141405C2

HARNESS

- tractor

1шт.

14

149456C91

SET

KIT - ring connector (Set of 10)

1шт.

15

1264471C1

CIRCUIT-BREAKER

BREAKER - circuit, 10 ampere

1шт.

16

306132C1

CABLE TIE,14.5" L

STRAP - retaining, 14 inch long

1шт.

18

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - retaining

3шт.

19

149493C1

PLATE

ASSEMBLY - marker control (Automatic markers), Includes: Decal

1шт.

REF

INSTRUCTION

DECAL - marker control, automatic (See Figure 9F-10)

1шт.

20

1250682C1

SWITCH

ASSEMBLY - marker control (Automatic markers), Includes: Ref. 21

1шт.

21

57603C1

NUT

- switch retaining

1шт.

22

109369C91

LIGHT ASSY.

LIGHT ASSEMBLY - indicator, Includes: Ref. 23 & 24

2шт.

23

200557H1

BULB,C2V, #1815, 14V

- light, No. 1815

1шт.

24

71652C1

LENS

- indicator light

1шт.

29

117620C1

CABLE

WIRE - 6 inch 1ong

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 inch OD tube

1шт.
