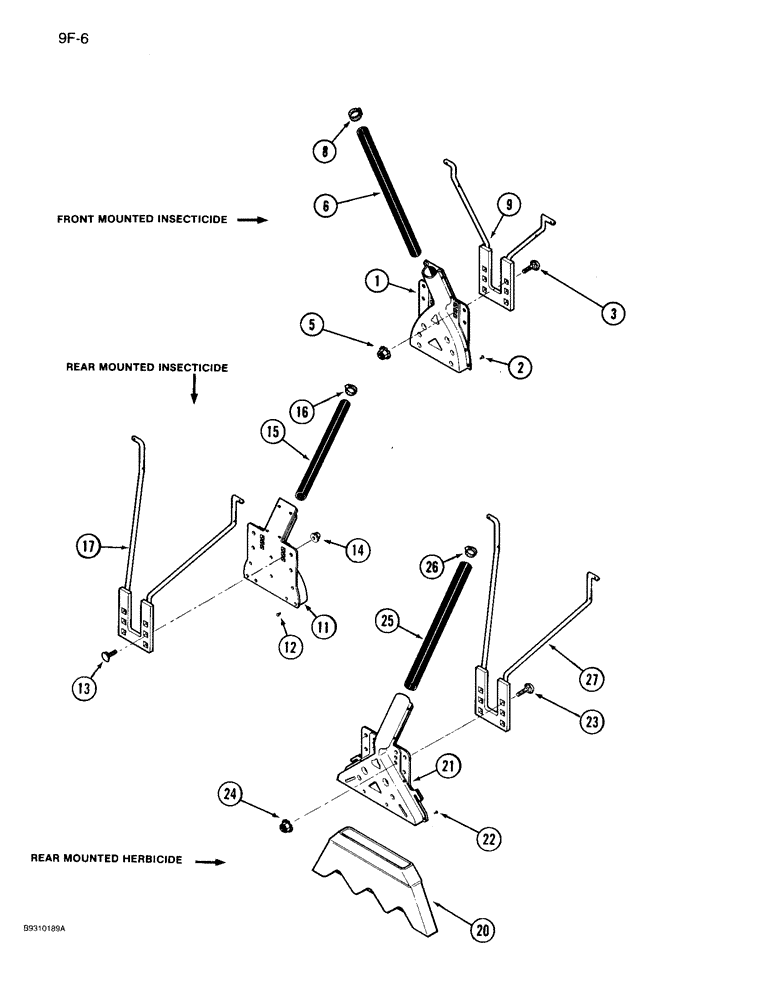

Запчасти Case IH 950 (9F-06) - FRONT MOUNTED INSECTICIDE SPREADER, REAR MOUNTED INSECTICIDE (09) - CHASSIS/ATTACHMENTS

1

1986065C2

SLINGER

SPREADER - insecticide

1шт.

2

1254229C1

RIVET

- oval head

6шт.

3

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

6

543746R2

HOSE,19.05 mm ID x 279.00 mm

19.05 mm ID x 279.00mm, Cut from 1254166C1 bulk hose, see below

1шт.

6

149307C1

HOSE

- 22 inch long (Cut from bulk hose 1254166C1, see below)

1шт.

8

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, #10, 0.56/1.06 Type F Worm

1шт.

9

149256C2

SUPPORT

- insecticide spreader

1шт.

11

1986065C2

SLINGER

SPREADER - insecticide REAR MOUNTED

1шт.

12

1254229C1

RIVET

- oval head REAR MOUNTED INSECTICIDE SPREADER

6шт.

13

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2 REAR MOUNTED INSECTICIDE SPREADER

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC REAR MOUNTED INSECTICIDE SPREADER

2шт.

15

141224C1

HOSE,19.05 mm ID x 355.00 mm

- 14 inch long (Cut from bulk hose 1254166C1, see below) REAR MOUNTED INSECTICIDE SPREADER

1шт.

16

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Rear mounted insecticide spreader #10, 0.56/1.06 Type F Worm

1шт.

17

137101C2

SUPPORT

- spreader REAR MOUNTED INSECTICIDE

1шт.

20

100087C1

DEFLECTOR

- herbicide SPREADER

1шт.

21

1986066C2

DRILL

SPREADER - herbicide

1шт.

22

1254229C1

RIVET

- oval head HERBICIDE SPREADER

6шт.

23

412-516

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT - carriage, 5/16 NC x 1 inch, grade 2 HERBICIDE SPREADER

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC HERBICIDE SPREADER

2шт.

25

141224C1

HOSE,19.05 mm ID x 355.00 mm

- 14 inch long (Cut from bulk hose 1254166C1, see below) HERBICIDE SPREADER

1шт.

26

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Herbicide spreader #10, 0.56/1.06 Type F Worm

1шт.

27

137101C2

SUPPORT

- spreader HERBICIDE

1шт.

1254166C1

TUBE

HOSE - hydraulic, 3/4 inch (19 mm) ID, 100 foot (2540 mm) roll HERBICIDE SPREADER

1шт.
