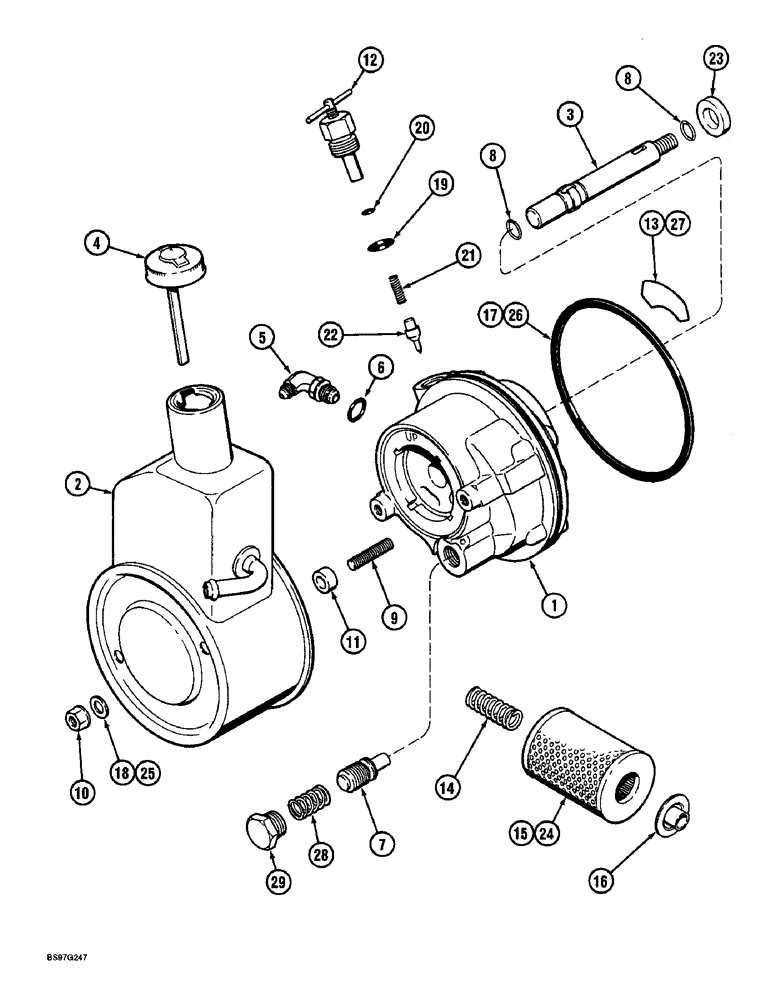

Запчасти Case IH 900 (8-142) - BLOWER HYDRAULIC PUMP, 1OOO RPM PTO, CYCLO AIR PLANTERS, 4, 6 AND 8 ROW (08) - HYDRAULICS

149368C91

PUMP

ASSEMBLY - hydraulic

1шт.

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 149368C91

1шт.

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - pump (Order pump assembly)

1шт.

2

62231C1

RESERVOIR

ASSEMBLY - pump, includes decal (Includes filter kit 507809C91, items 14 through 18)

1шт.

2

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 62231C1

1шт.

2

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2a

145167C1

DECAL

- Caution, when this unit is removed (not shown) (see Page 9-335)

1шт.

3

62226C1

SHAFT

- pump

1шт.

4

467536C91

CAP

- filler

1шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

62414C1

VALVE

ASSEMBLY - relief

1шт.

8

62385C1

RING

- snap

2шт.

9

58597C1

STUD

- reservoir

2шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

58598C1

SPACER

- reservoir (If equipped)

2шт.

12

62229C2

KIT

STEM ASSEMBLY - throttle valve

1шт.

13

507810C91

KIT

O-RING - pump

4шт.

507809C91

FILTER, ENGINE OIL

KIT - filter

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - filter

1шт.

15

NSS

NOT SOLD SEPARAT

FILTER - oil, hydraulic

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - filter

1шт.

17

NSS

NOT SOLD SEPARAT

GASKET - pump

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - sealing

2шт.

62230C1

KIT

- throttle valve

1шт.

19

62227C1

O-RING,0.755" ID x 0.949" OD x 0.097" Width

O-RING - valve cap

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - stem (If equipped)

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING VALVE -

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - throttle

1шт.

479187C92

PACKAGE

KIT - gasket

1шт.

23

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil

1шт.

24

NSS

NOT SOLD SEPARAT

FILTER - hydraulic

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - sealing

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET - pump

1шт.

27

507810C91

KIT

O-RING - pump

4шт.

28

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

Per Branko ref 28 p/n 482383C1, Case has no demand for it so try DPNI or 1-800-325-3076. CS 4/19/99

1шт.

29

482383C1

SPRING

VALVE - cap(replaces NSS)

1шт.

Ref # 29, is not in the kit. Part number is 482383C1. bj 4/19/99

1шт.
