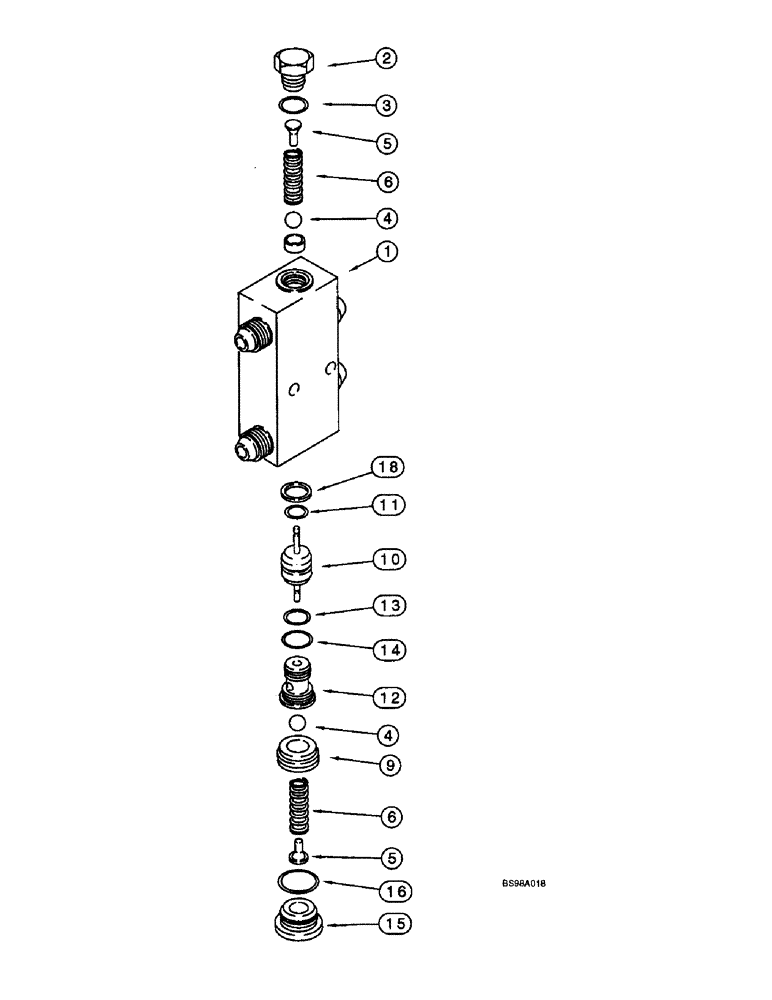

Запчасти Case IH 900 (8-138) - ALTERNATING LOAD CHECK VALVE (08) - HYDRAULICS

142864C95

VALVE

ASSEMBLY - load check, alternating

1шт.

1

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - valve (Order valve assembly)

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - centering, spring

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

211-1016

BALL,12.7mm OD, Gr 24

- chrome alloy steel, 1/2 inch, grade 24

2шт.

5

85145C1

PIN

- ball retaining

2шт.

6

372649R1

SPRING

- load check

2шт.

9

374172R1

NUT

- retainer

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - valve (Order valve assembly)

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

374087R31

RETAINER

- valve ball

1шт.

13

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

374088R1

PLUG

- recessed flat head

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

142865C1

SEAL

- piston

1шт.
