Запчасти Case IH 900 (8-136) - ALTERNATING LOAD CHECK VALVE ATTACHMENT (08) - HYDRAULICS

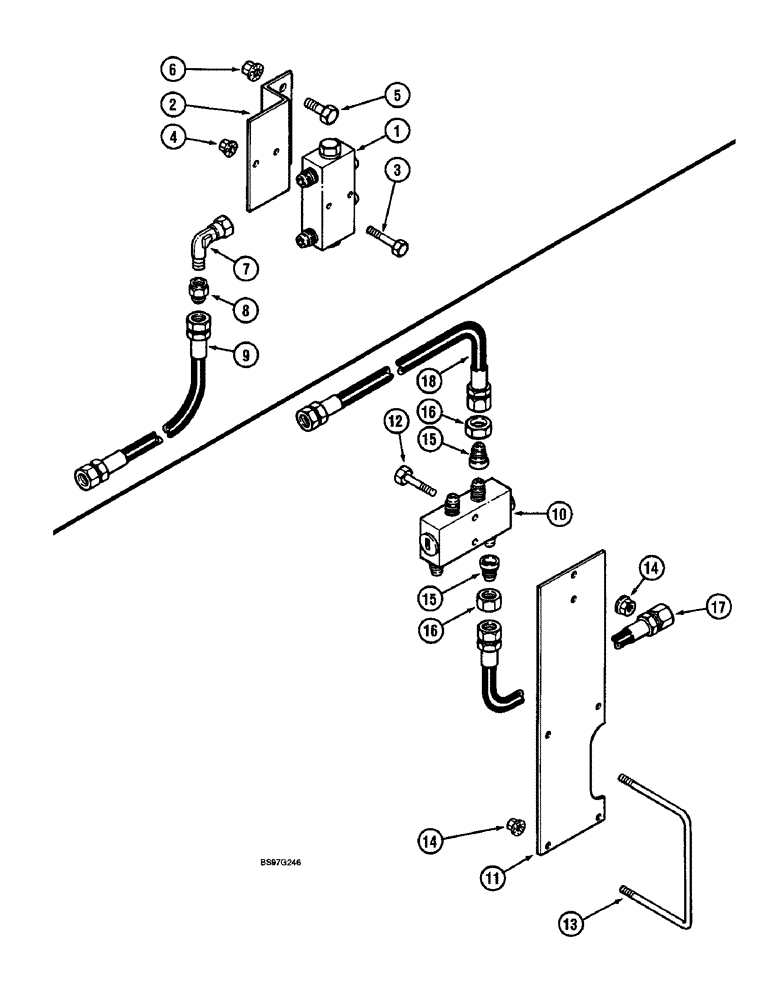

Схема запчастей Case IH 900 - (8-136) - ALTERNATING LOAD CHECK VALVE ATTACHMENT (08) - HYDRAULICS
16
18
4
7
6
5
17
3
9
16
15
1
15
2
10
8
14
13
11
14
12

Артикул

Название

Примечание

Количество

1

142864C95

VALVE

ASSEMBLY - load check, alternating, cyclo air semi-mounted-6 row, 8 row narrow, and corn/soybean special, cyclo air vertical folding-all row sizes, plate vertical folding-12 row narrow (See Figure 8-138)

1шт.

2

1264387C1

SUPPORT

- check valve

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, if used

2шт.

3

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, If used

2шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

7

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

8

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducing, 7/8-14 str thread x 3/4-16 inch flare

4шт.

9

90880C1

HYDRAULIC HOSE,12.70 mm ID x 635.00 mm, SAE 100 R17

2шт.

10

142864C95

VALVE

ASSEMBLY - load check, alternating, 6 Row Narrow & 4 Row (See Figure 8-138), cyclo air & plate trailing - 6 row narrow & 4

1шт.

11

91333C1

SUPPORT

- check valve, cyclo air & plate trailing - 6 row narrow & 4

1шт.

12

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, Cyclo air & plate trailing - 6 row narrow & 4

2шт.

13

541659R1

BOLT,3/8" - 16 x 5 7/8"

U-BOLT - 3/8 inch NC, cyclo air & plate trailing - 6 row narrow & 4

2шт.

14

231-5146

FLANGE NUT,3/8"-16

Cyclo air & plate trailing - 6 row narrow & 4 Flg, USR, 3/8"-16

6шт.

15

218-793

REDUCER,37 Degree, 5/8" x 1/4" Tube

ADAPTER - reducing, 5/8 tube OD x 9/16-18 inch flare, cyclo air & plate trailing - 6 row narrow & 4

4шт.

16

218-345

TUBE NUT,37 Degree, 7/8"-14, Type B

NUT - hex, 7/8 inch NF, cyclo air & plate trailing - 6 row narrow & 4

4шт.

17

139654C2

HYDRAULIC HOSE

HOSE - 3175 mm (125 inch) long, lower, cyclo air & plate trailing - 6 row narrow & 4

2шт.

18

1254574C2

HYDRAULIC HOSE

HOSE - 1525 mm (60 inch) long, upper, cyclo air & plate trailing - 6 row narrow & 4

2шт.

Выбрано товаров: 19
