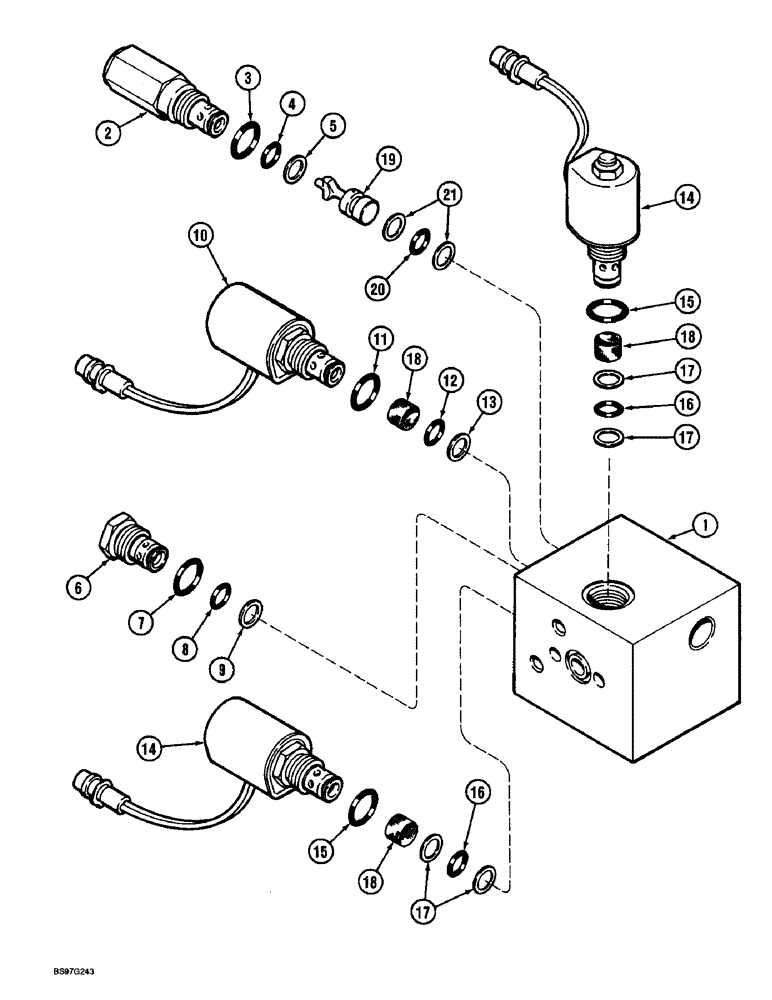

Запчасти Case IH 900 (8-130) - LEFT HAND WING SEQUENCING VALVE, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

1255327C91

BLOCK

VALVE ASSEMBLY - sequencing

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order 1255327C91 Valve Assembly

1шт.

2

149939C2

VALVE

ASSEMBLY - relief

1шт.

149942C1

SEAL KIT

KIT - seal replacement, relief valve

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

6

149938C1

CHECK VALVE,7/8" - 14

VALVE - check

1шт.

149942C1

SEAL KIT

KIT - seal replacement, check valve

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

10

149944C91

VALVE

ASSEMBLY - solenoid

1шт.

149942C1

SEAL KIT

KIT - seal replacement, solenoid valve

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

14

149989C91

VALVE

- solenoid

2шт.

1272308C1

SEAL KIT

KIT - seal, solenoid valve

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

18

1285892C1

FILTER SCREEN

SCREEN - filter

3шт.

19

1260962C2

PISTON

- pilot

1шт.

149941C1

PACKAGE

KIT - seal, repair

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.
