Запчасти Case IH 900 (8-126) - RIGHT HAND HOLDING VALVE (08) - HYDRAULICS

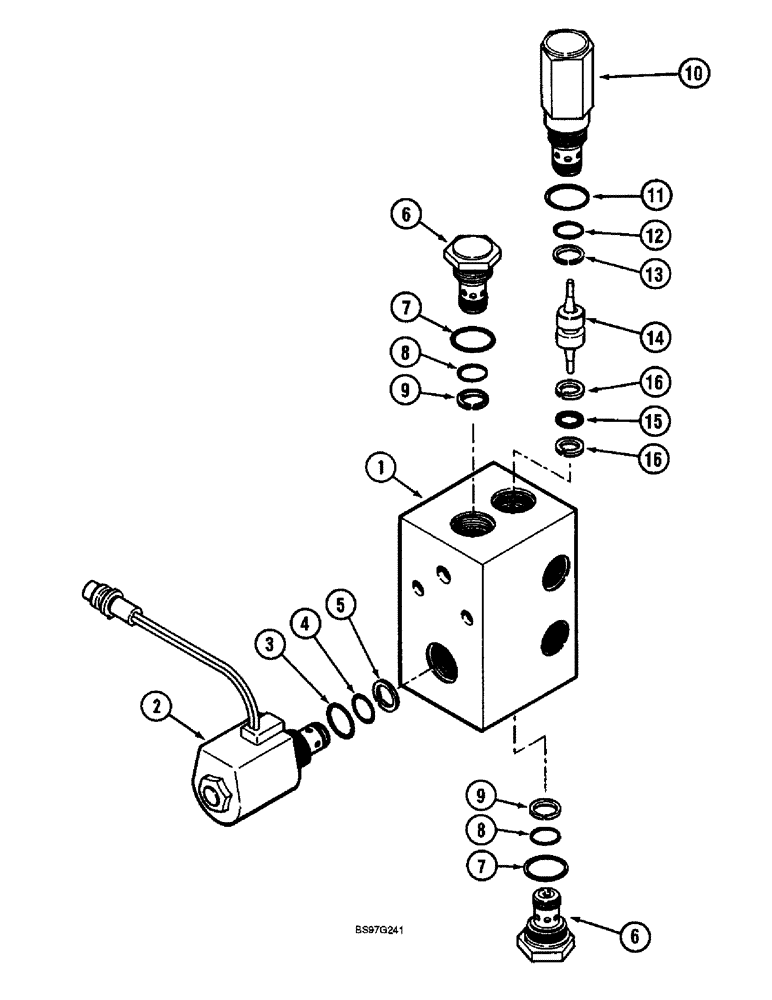

Схема запчастей Case IH 900 - (8-126) - RIGHT HAND HOLDING VALVE (08) - HYDRAULICS
7
9
9
1
10
16
15
4
12
13
14
8
11
8
16
6
3
5
6
2
7

Артикул

Название

Примечание

Количество

149740C91

VALVE

ASSEMBLY - holding, cyclo air trailing-8 row wide and 12 row narrow, cyclo air trailing-6 row wide & 8 row narrow prior to s/n JJC0022500, plate trailing-8 row narrow prior to s/n JJC0022500, Includes: Ref. 1 - 16

1шт.

1

149943C1

BODY

- valve

1шт.

2

149944C91

VALVE

ASSEMBLY - solenoid, Includes: Ref. 3 - 5

1шт.

149942C1

SEAL KIT

KIT - seal replacement, solenoid valve, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

6

149938C1

CHECK VALVE,7/8" - 14

VALVE - check, Includes: Ref. 7 - 9

2шт.

149942C1

SEAL KIT

KIT - seal replacement, check valve, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

10

149939C2

VALVE

ASSEMBLY - relief, Includes: Ref. 11 - 13

1шт.

149942C1

SEAL KIT

KIT - seal replacement, relief valve, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

14

149940C1

PISTON

- pilot

1шт.

149941C1

PACKAGE

KIT - seal, repair, piston, Includes: Ref. 15 & 16

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Выбрано товаров: 21
