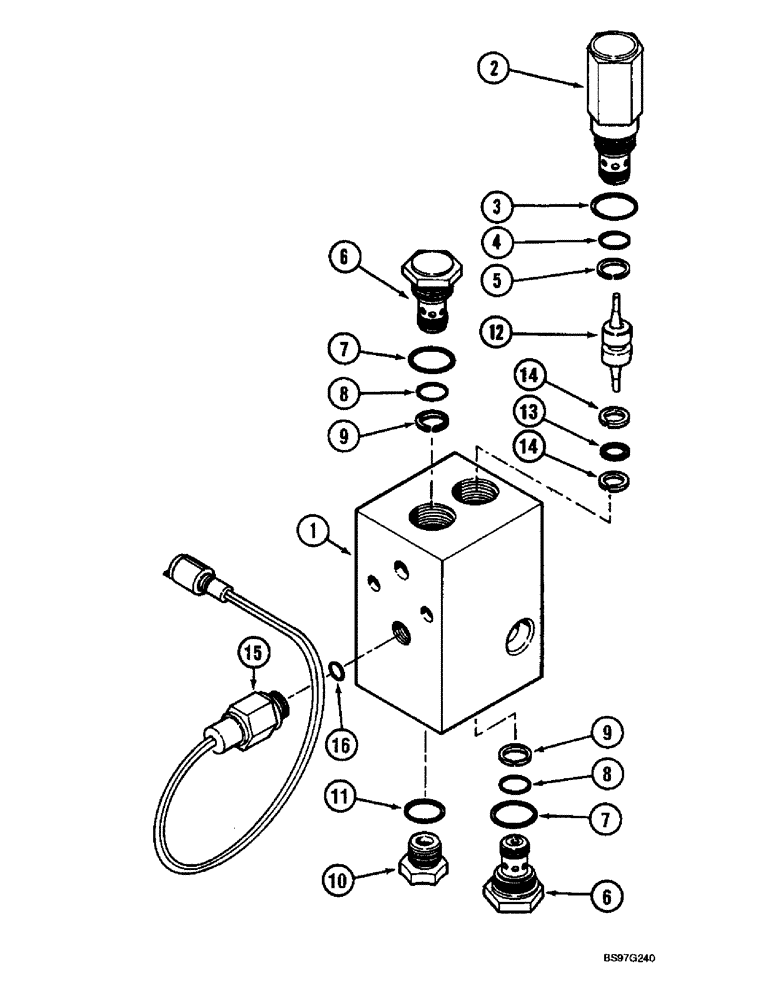

Запчасти Case IH 900 (8-124) - LEFT HAND HOLDING VALVE (08) - HYDRAULICS

149739C94

VALVE

ASSEMBLY - holding, level lift, left-hand, cyclo air trailing-8 row wide and 12 row narrow, cyclo air trailing-6 row wide & 8 row narrow prior to s/n JJC0022500, plate trailing-8 row narrow prior to s/n JJC0022500, Includes: Ref. 1 - 16

1шт.

1

149937C1

BODY

- valve

1шт.

2

149939C2

VALVE

ASSEMBLY - relief, Includes: Ref. 3 - 5

1шт.

149942C1

SEAL KIT

KIT - seal replacement, relief valve, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

6

149938C1

CHECK VALVE,7/8" - 14

VALVE - check, Includes: Ref. 7 - 9

2шт.

149942C1

SEAL KIT

KIT - seal replacement, check valve, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

10

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

149940C1

PISTON

- pilot

1шт.

149941C1

PACKAGE

KIT - seal, repair, piston, Includes: Ref. 13 & 14

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

15

1547188C1

SWITCH

- pressure, 1900 psi

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
