Запчасти Case IH 900 (8-122) - LEVEL LIFT VALVE ASSEMBLY (08) - HYDRAULICS

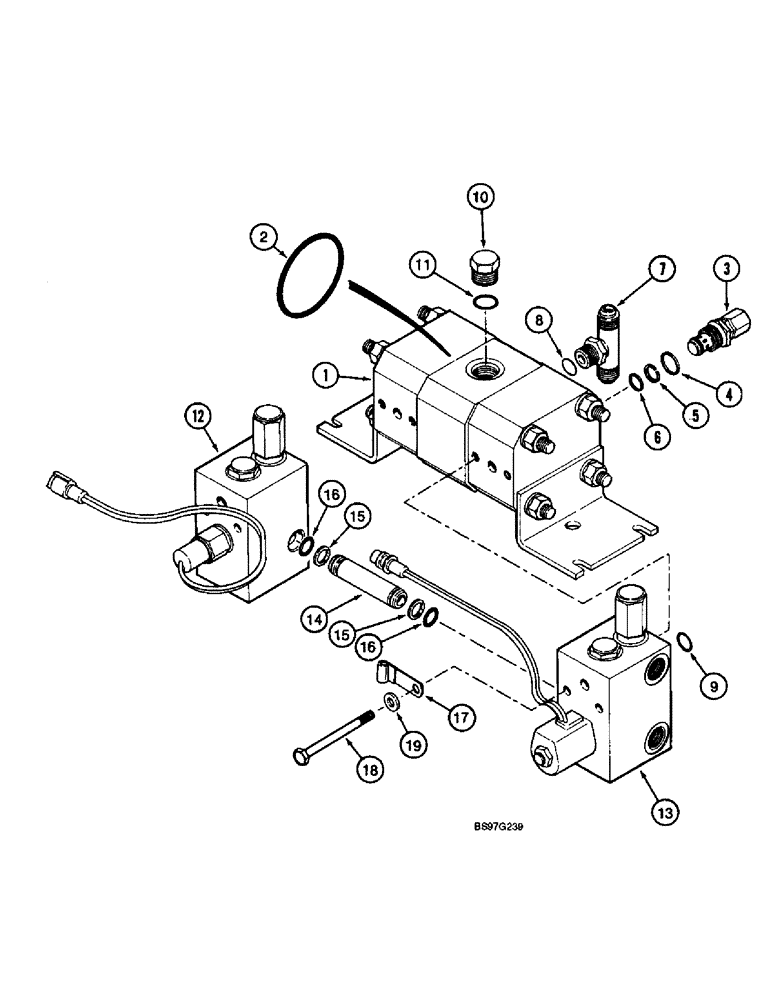

Схема запчастей Case IH 900 - (8-122) - LEVEL LIFT VALVE ASSEMBLY (08) - HYDRAULICS
8
13
4
16
17
15
18
14
3
10
7
1
2
5
6
11
19
9
12
15
16

Артикул

Название

Примечание

Количество

142860C92

VALVE

ASSEMBLY - level lift, not available as an assembly, order component parts

1шт.

1

142843C93

VALVE

ASSEMBLY - flow divider

1шт.

2

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

-041, 70 Duro, 2.989" ID x .070" Thk

2шт.

3

149932C1

VALVE

ASSEMBLY - relief

2шт.

149942C1

SEAL KIT

KIT - seal replacement, relief valve

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

7

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch adj O-ring branch x flare x flare

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

2шт.

10

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

149739C94

VALVE

ASSEMBLY - holding, level lift, left-hand (See Page 8-125)

1шт.

13

149740C91

VALVE

ASSEMBLY - holding (See Page 8-127)

1шт.

14

142822C1

TUBE,19.05 mm OD, 83 mm Length

- junction

1шт.

15

544795R1

WASHER

RING - backup

2шт.

16

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

17

384554R1

CLIP

- retaining

1шт.

18

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

4шт.

19

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.
