Запчасти Case IH 900 (8-116) - ROW MARKER VALVE (08) - HYDRAULICS

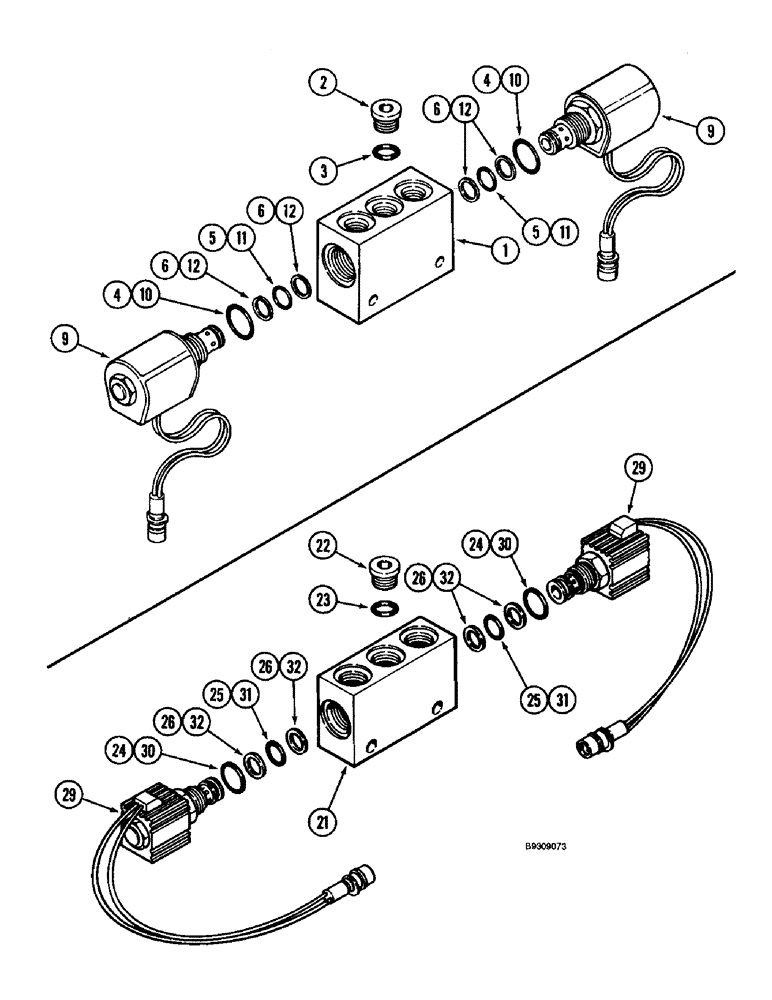

Схема запчастей Case IH 900 - (8-116) - ROW MARKER VALVE (08) - HYDRAULICS
32
6
9
31
30
29
24
29
30
12
4
12
26
6
10
22
5
26
5
2
4
21
6
25
3
23
32
25
10
11
1
32
26
11
9
31
12
24

Артикул

Название

Примечание

Количество

149988C92

VALVE

ASSEMBLY - control, row marker (Modular Controls) (alternative part is 1272632C91)

1шт.

1

145317C2

VALVE BODY

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - 9/16-18 inch O-ring boss

1шт.

145316C1

REPAIR KIT

KIT - seal, repair, valve assembly

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

5

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER - backup

4шт.

9

149989C91

VALVE

- solenoid

2шт.

1272308C1

SEAL KIT

KIT - seal, repair, solenoid valve

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

1272632C91

VALVE

ASSEMBLY - control, row marker (Waterman) (alternative part) (no longer available, order 149988C92 control valve assembly)

1шт.

21

1272827C1

VALVE BODY

BODY - valve

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - valve body

1шт.

1272828C1

SEAL KIT

KIT - seal, repair, valve assembly (see note)

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

25

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve

2шт.

26

NSS

NOT SOLD SEPARAT

WASHER - backup

4шт.

29

1272830C91

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, no longer available, order 149988C92 control valve assembly

2шт.

30

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve (Order 1272828C1)

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - solenoid valve (Order 1272828C1)

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - backup (Order 1272828C1)

2шт.

Выбрано товаров: 25
