(8-113A) - CYLINDER DEPTH CONTROL STOP COLLAR, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD

Запчасти Case IH 900 (8-113A) - CYLINDER DEPTH CONTROL STOP COLLAR, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS

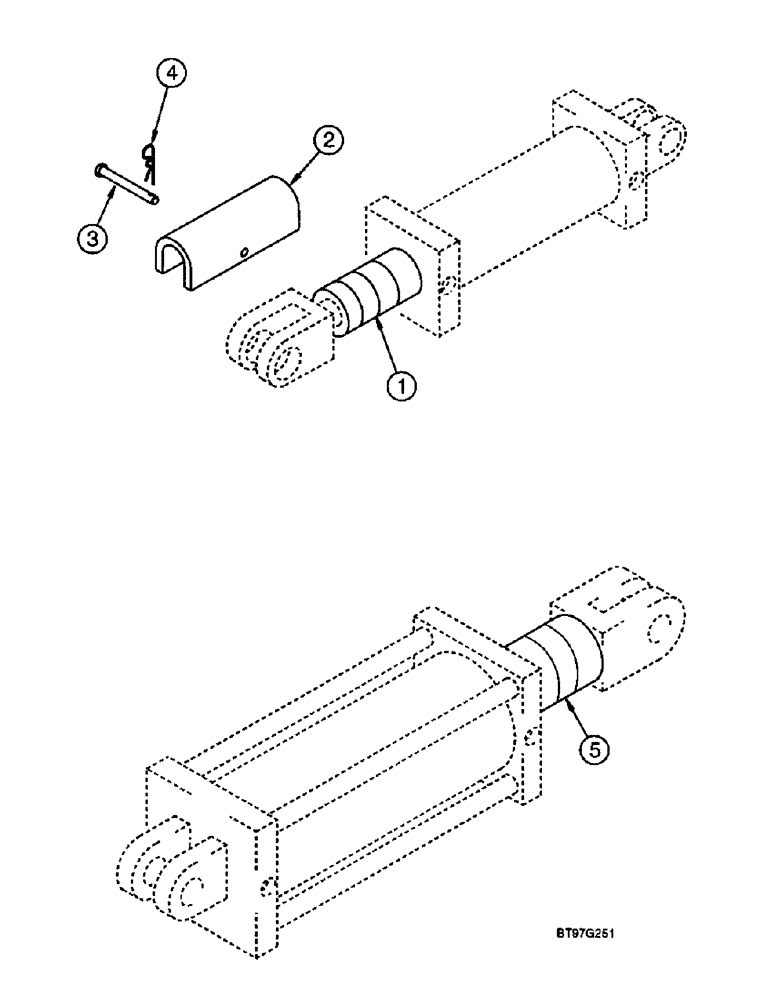

Схема запчастей Case IH 900 - (8-113A) - CYLINDER DEPTH CONTROL STOP COLLAR, 8 ROW WIDE AND 12 ROW NARROW, VERTICAL FOLD (08) - HYDRAULICS
4
3
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7737869

COLLAR

KIT - stroke control collar

4шт.

2

1268367C2

STOP

- cylinder assembly

2шт.

3

439-5454

HEADED PIN,1/4" x 3 3/8"

PIN - headed, 1/4 x 3-3/8 inch

2шт.

4

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - locking

2шт.

5

110584A1

PACKAGE

KIT - stroke control collar

2шт.
