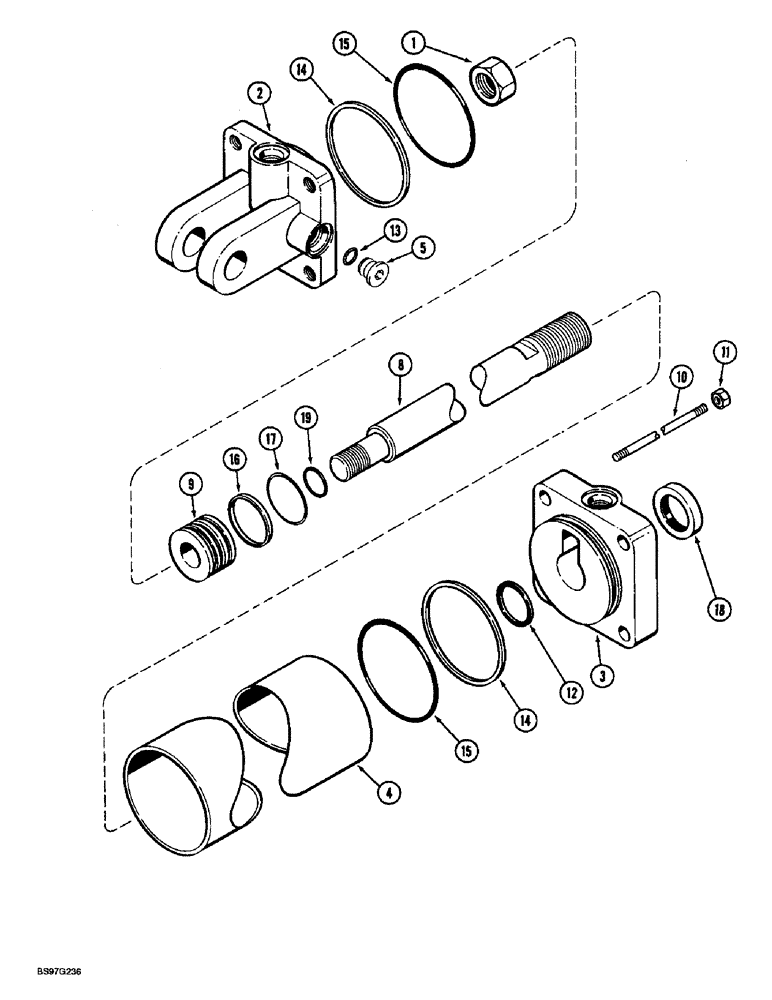

Запчасти Case IH 900 (8-112) - HITCH LINK HYDRAULIC CYLINDER, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

1267167C92

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, hitch link

1шт.

1

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

2

1272825C1

HEAD

- cylinder, two ports, rear (Replaces 1923599C1)

1шт.

3

1272826C1

HEAD

GLAND - cylinder, front

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl item 13 Hex Soc, 3/4"-16 ORB

1шт.

8

1285758C1

ROD

- cylinder

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

84919C2

GASKET KIT

KIT - seal

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

15

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 3-1/4 inch ID

2шт.

16

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston, 3 inch ID

1шт.

18

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - piston, Serial Range: rod-piston

1шт.
