Запчасти Case IH 900 (8-110) - HITCH LINK AND CYLINDER, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

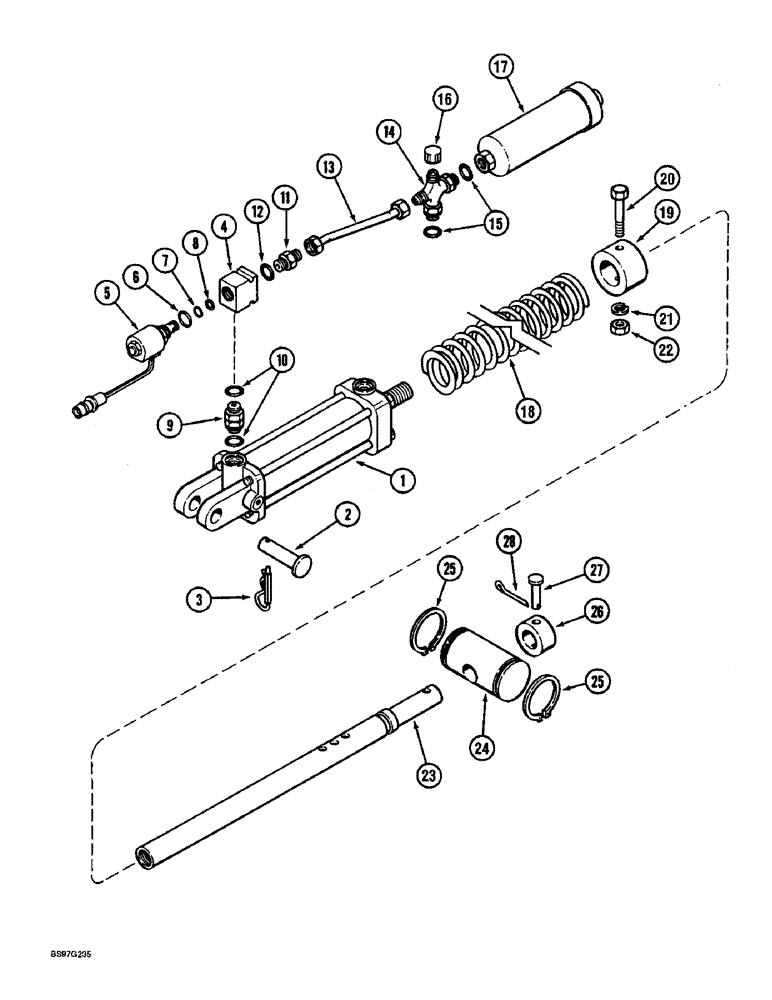

Схема запчастей Case IH 900 - (8-110) - HITCH LINK AND CYLINDER, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS
1
24
11
28
6
7
12
18
14
3
8
21
25
17
22
5
23
15
2
27
13
4
26
16
20
9
25
19
10

Артикул

Название

Примечание

Количество

1

1267167C92

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, hitch link (See Page 8-113)

1шт.

2

61571C2

HEADED PIN,25.4mm OD x 82.5mm L

PIN - headed, 1 x 3-1/4 inch

1шт.

3

1978738C1

HAIR PIN COTTER

3/16"

1шт.

1260819C91

VALVE

- control, hitch cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

149944C91

VALVE

ASSEMBLY - solenoid

1шт.

149942C1

SEAL KIT

KIT - seal replacement

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - valve, large

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - valve, small

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

9

1261010C1

FITTING

ADAPTER - straight, special

1шт.

10

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

1264103C1

HYD TUBE

TUBE -, Serial Range: valve-cross

1шт.

14

1264278C1

CROSS

- adjustable, special

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

16

218-755

CAP,37 Degree, 3/4"-16

1шт.

17

1272647C1

ACCUMULATOR

- cylinder

1шт.

18

60148C1

SPRING

- link

1шт.

19

1277575C1

COLLAR

- link1261010

1шт.

20

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

23

1264092C3

LINK ASSY.

LINK - cylinder

1шт.

24

1268156C1

PIN

- link

1шт.

25

100-11275

SNAP RING,#275, Ext

Ring, Snap, #275, Ext

2шт.

26

1264095C1

STOP

- spring, cylinder

1шт.

27

439-1856

HEADED PIN,1/2" x 3 1/2"

PIN - headed, 1/2 x 3-1/2 inch, grade 2

1шт.

28

432-1216

COTTER PIN,3/16" x 1"

1шт.

Выбрано товаров: 30
