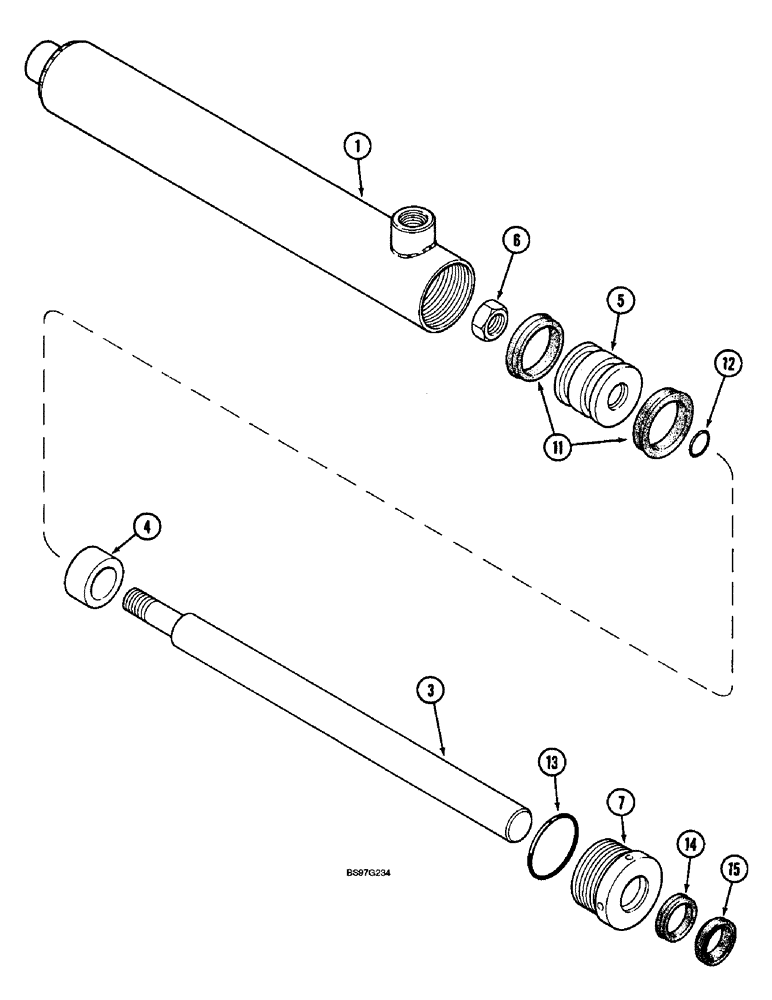

Запчасти Case IH 900 (8-108) - HYDRAULIC PRESSURE BOOSTER CYLINDER, PLATE VERTICAL FOLDING, 12 ROW NARROW (08) - HYDRAULICS

1272190C91

CYLINDER

ASSEMBLY - 51 (2) ID x 305 mm (12 inch) stroke, pressure booster

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

NSS

NOT SOLD SEPARAT

STOP - piston rod

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

NUT - lock, piston

1шт.

7

NSS

NOT SOLD SEPARAT

GLAND - cylinder end

1шт.

1272191C91

SEAL KIT

- seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 5/8 ID x 3/32 inch, Serial Range: piston-rod

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 1-7/8 ID x 3/16 inch, Serial Range: gland-body

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.
