Запчасти Case IH 900 (8-106) - HYDRAULIC PRESSURE BOOSTER, PLATE VERTICAL FOLDING, 12 ROW NARROW (08) - HYDRAULICS

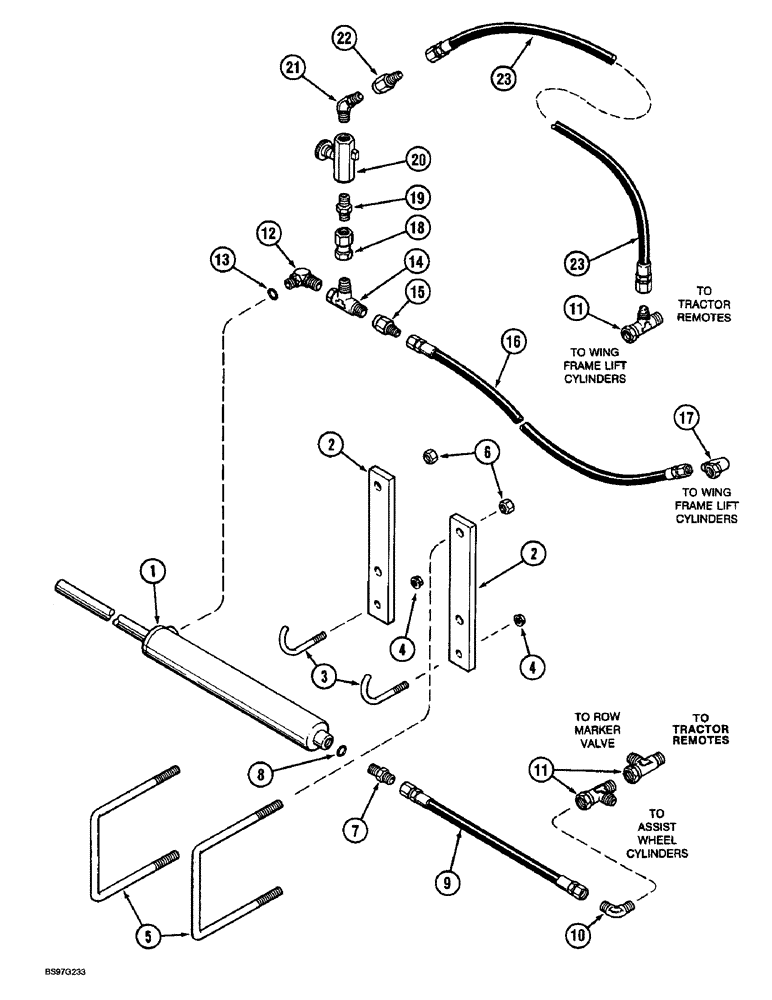

Схема запчастей Case IH 900 - (8-106) - HYDRAULIC PRESSURE BOOSTER, PLATE VERTICAL FOLDING, 12 ROW NARROW (08) - HYDRAULICS
15
3
7
16
21
4
8
20
11
23
4
12
14
11
22
19
18
10
2
1
2
9
23
17
13
5
6

Артикул

Название

Примечание

Количество

1

1272190C91

CYLINDER

ASSEMBLY - 51 (2) ID x 305 mm (12 inch) stroke, pressure booster (See Page 8-109)

1шт.

2

1268395C1

BAR

BRACKET - support

2шт.

3

1268394C1

BOLT,1/2" - 13 x 72mm

J-BOLT - 1/2 INCH NC

2шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

5

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

390649R92

HYDRAULIC HOSE

HOSE - 483 mm (19 inch) long

1шт.

10

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

11

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

3шт.

12

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel

1шт.

15

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducing, 7/8-14 str thread x 3/4-16 inch flare

1шт.

16

90878C1

HYDRAULIC HOSE

HOSE - 990 mm (39 inch) long

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

18

1277554C1

CONNECTOR, ELEC

CONNECTOR - straight, special

1шт.

19

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - straight, 1/2 PT x 1-13/16 inch

1шт.

20

122825C1

VALVE

- flow control

1шт.

21

86513002

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 7/8-14 flare x 1/2 inch PT

1шт.

22

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducing, 7/8-14 str thread x 3/4-16 inch flare

1шт.

23

90875C1

HYDRAULIC HOSE

HOSE - 737 mm (29 inch) long

1шт.

Выбрано товаров: 23
