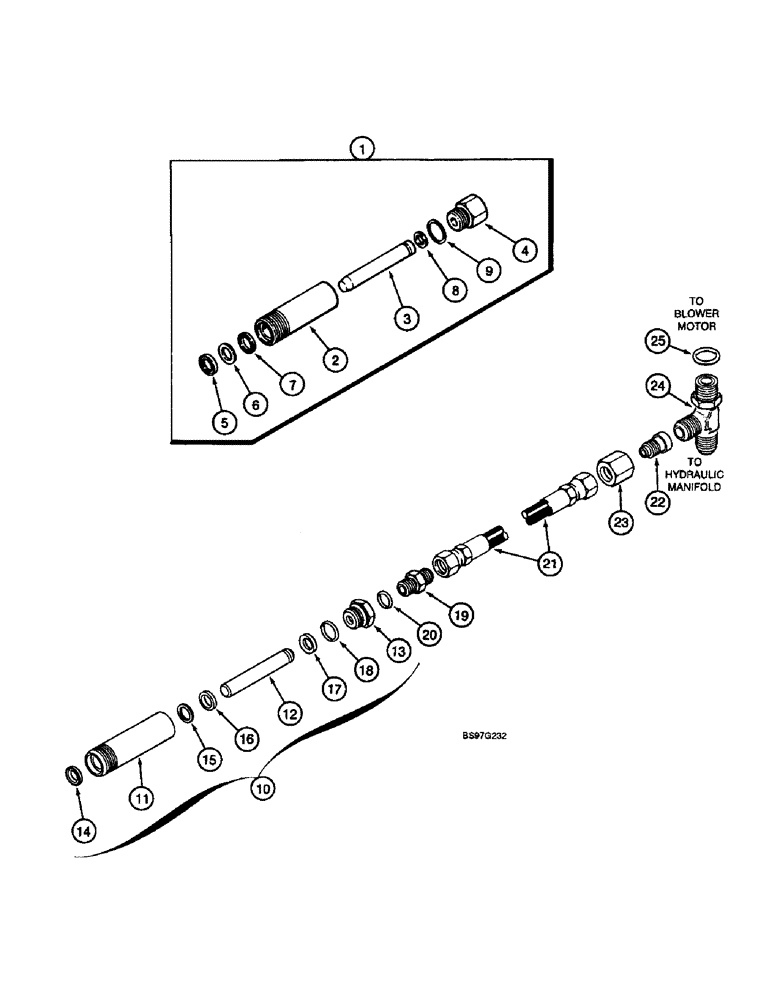

Запчасти Case IH 900 (8-104) - SEED SHUTOFF HYDRAULIC CYLINDER, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

1

85229C1

CYLINDER

ASSEMBLY - seed shutoff, 13 (1/2) ID x 44 mm (1-3/4 inch) stroke, seed shutoff (Iowa Industrial) (no longer available, order 1260965C93, see item 10)

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - cylinder

1шт.

93060C1

SEAL KIT

- seal, repair

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

8

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

1260965C93

CYLINDER

ASSEMBLY - 13 (1/2) ID x 44 mm (1-3/4 inch) stroke, seed shutoff (Cessna)

2шт.

11

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order 1260965C93)

1шт.

12

NSS

NOT SOLD SEPARAT

ROD - cylinder (Order 1260965C93)

1шт.

13

NSS

NOT SOLD SEPARAT

BUSHING - cylinder (Order 1260965C93)

1шт.

1272530C92

SEAL KIT

- seal, repair

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

21

1254574C2

HYDRAULIC HOSE

HOSE - 1525 mm (60 inch) long

2шт.

22

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER - reducing, 1/2 tube OD x 9/16-18 inch flare

2шт.

23

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 1/2 inch NF

2шт.

24

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
