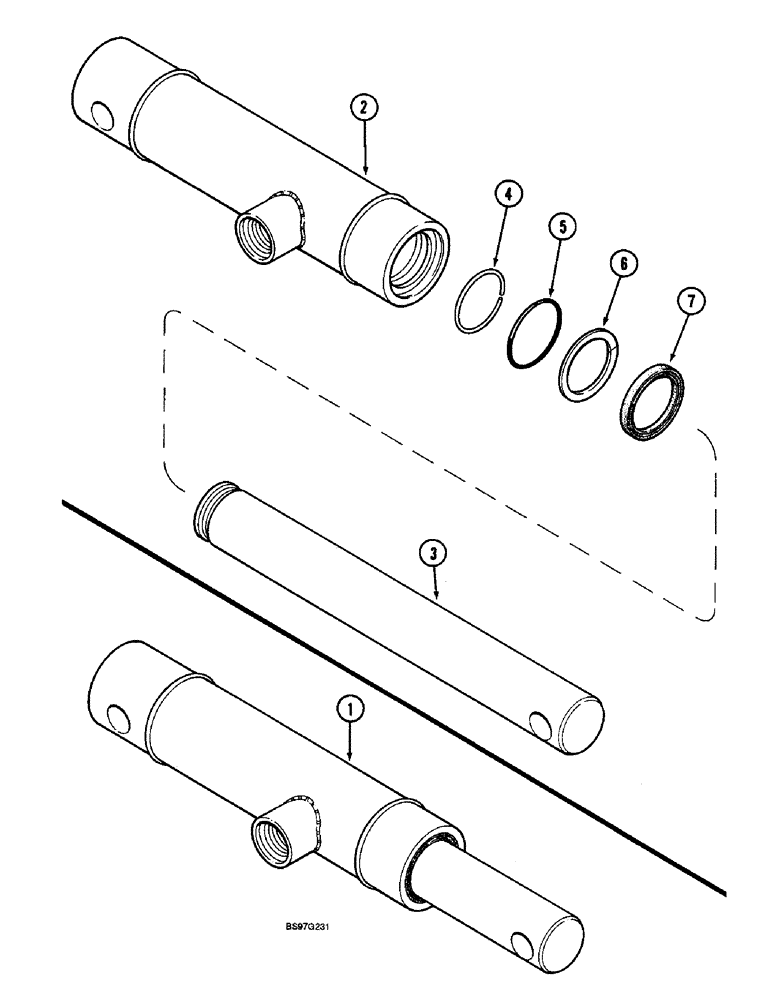

Запчасти Case IH 900 (8-102) - FRAME LATCH HYDRAULIC CYLINDER, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

1

1285724C2

CYLINDER

ASSEMBLY - 25 (1) ID x 102 mm (4 inch) stroke, frame latch (Bruning) (serviced as a complete assembly only) (no longer available, replaced by 1282429C92 cylinder, see below)

2шт.

1282429C92

CYLINDER

ASSEMBLY - 25 (1) ID x 102 mm (4 inch) stroke, frame latch

2шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

3

1282430C2

ROD

- cylinder

1шт.

4

145190C1

SNAP RING

RING - retaining

1шт.

5

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

6

532854R1

SEAL,25.17mm ID x 31.52mm OD x 1.32mm Thk

RING - backup

1шт.

7

532773R1

WIPER SEAL

WIPER - piston rod

1шт.
