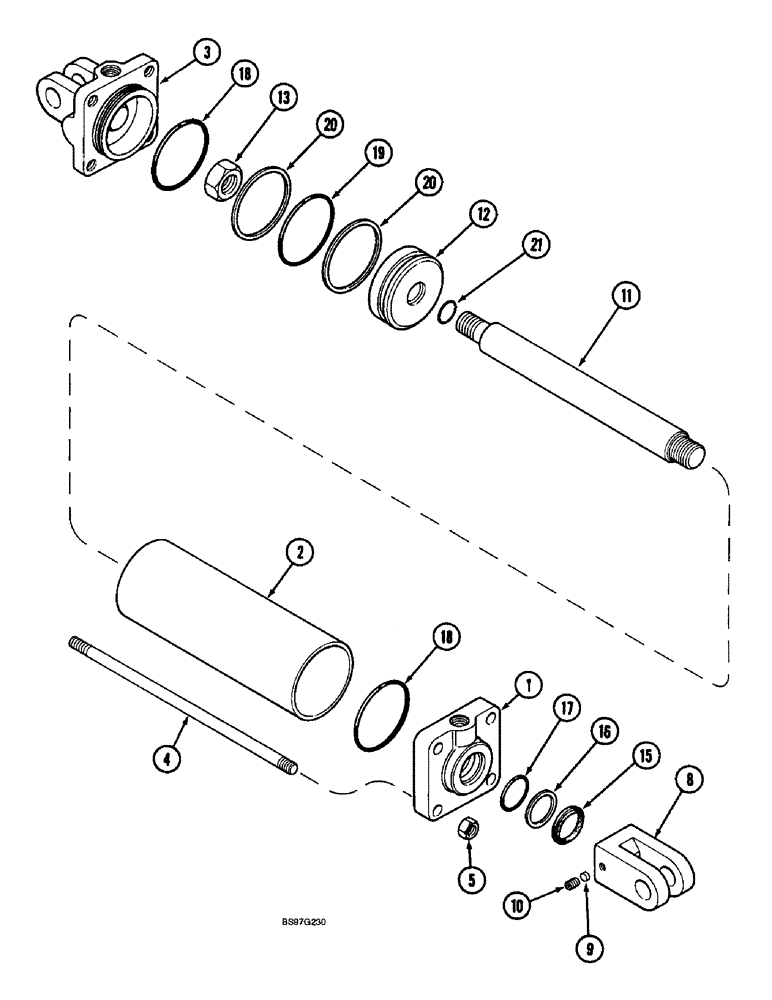

Запчасти Case IH 900 (8-100) - WING FRAME LIFT HYDRAULIC CYLINDER, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

142547C93

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 305 mm (12 inch) stroke, wing frame lift (Prince Manufacturing) (no longer available, order 92790C91, page 8-99)

2шт.

1

79933C1

END

GLAND - cylinder, 3/4-16 inch port

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

3

79931C1

END

HEAD - rear

1шт.

4

79934C2

ROD,5/8" - 18 x 17.625"

BOLT - tie, cylinder

4шт.

5

232-46110

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

76704C1

FORK

CLEVIS ASSEMBLY - rod end

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

10

84-3386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket headless, 3/8 NF x 3/8 inch, flat point

1шт.

11

79932C1

ROD

- cylinder

1шт.

12

76701C1

PISTON

- cylinder

1шт.

13

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex, self-locking, 1-1/4 inch NF, grade 8

1шт.

76980C1

PACKAGE

KIT - seal

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - 2 ID x 13/64 inch, front head

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - 4 1/2 ID x 9/32 inch (90 durometer) body to front and rear head

2шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 4-1/2 ID x 9/32 inch (70 durometer) piston seal

1шт.

20

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1/16 inch, piston, Serial Range: rod-piston

1шт.
