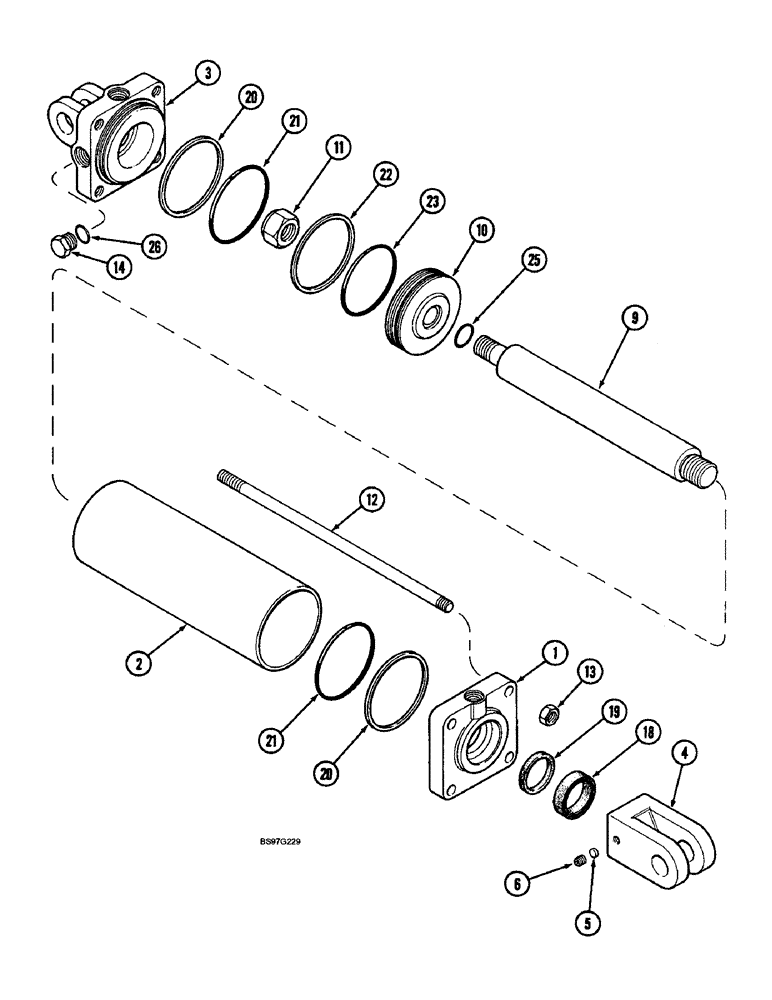

Запчасти Case IH 900 (8-098) - WING FRAME LIFT HYDRAULIC CYLINDER, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

92790C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 127 (5) ID x 305 mm (12 inch) stroke, wing frame lift (Iowa Industrial) (replaces 142547C93)

2шт.

1

92857C1

HEAD (CYLINDER)

GLAND - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

3

1286381C1

HEAD

- cylinder

1шт.

4

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

5

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

6

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

9

92856C1

PISTON ROD

ROD - cylinder

1шт.

10

1286382C2

PISTON

- cylinder

1шт.

11

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex, self-locking, 1-1/4 inch NF, grade 8

1шт.

12

92858C1

BOLT,3/4" - 10 x 17.812"

- tie, cylinder

4шт.

13

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

14

214389

PLUG,3/4" - 16 ORB

Includes item 26 Hex Hd, 3/4"-16 ORB

1шт.

85126C1

SEAL KIT

- seal, repair

1шт.

18

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

20

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - cylinder head and, Serial Range: gland-body

2шт.

22

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
