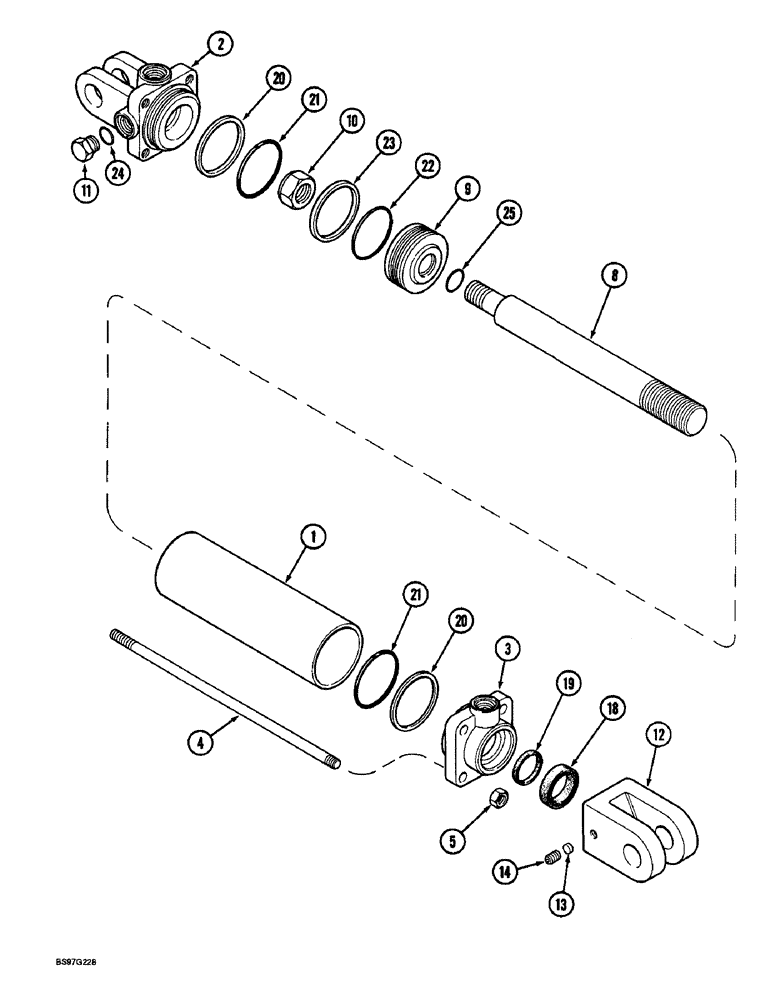

Запчасти Case IH 900 (8-094) - STEERING WHEEL HYDRAULIC CYLINDER, CYCLO AIR HORIZONTAL FOLDING, ALL ROW SIZES (08) - HYDRAULICS

1272145C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 64 (2-1/2)ID x 203 mm (8 inch) stroke, steering wheel

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

1272766C1

HEAD

CAP - end, cylinder

1шт.

3

1272767C1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

1272747C1

TIE-ROD,7/16" - 14 x 12.25mm

BOLT - tie, 7/16 inch NC, cylinder

4шт.

5

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

4шт.

8

145231C1

PISTON ROD

ROD - piston

1шт.

9

145221C3

PISTON

- cylinder

1шт.

10

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

11

214389

PLUG,3/4" - 16 ORB

Includes item 24 Hex Hd, 3/4"-16 ORB

1шт.

12

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

13

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

14

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

79975C2

SEAL KIT

KIT - seal replacement

1шт.

18

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

20

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - cylinder head and, Serial Range: gland-body

2шт.

22

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.
