Запчасти Case IH 900 (8-092) - ASSIST WHEEL HYDRAULIC CYLINDER (08) - HYDRAULICS

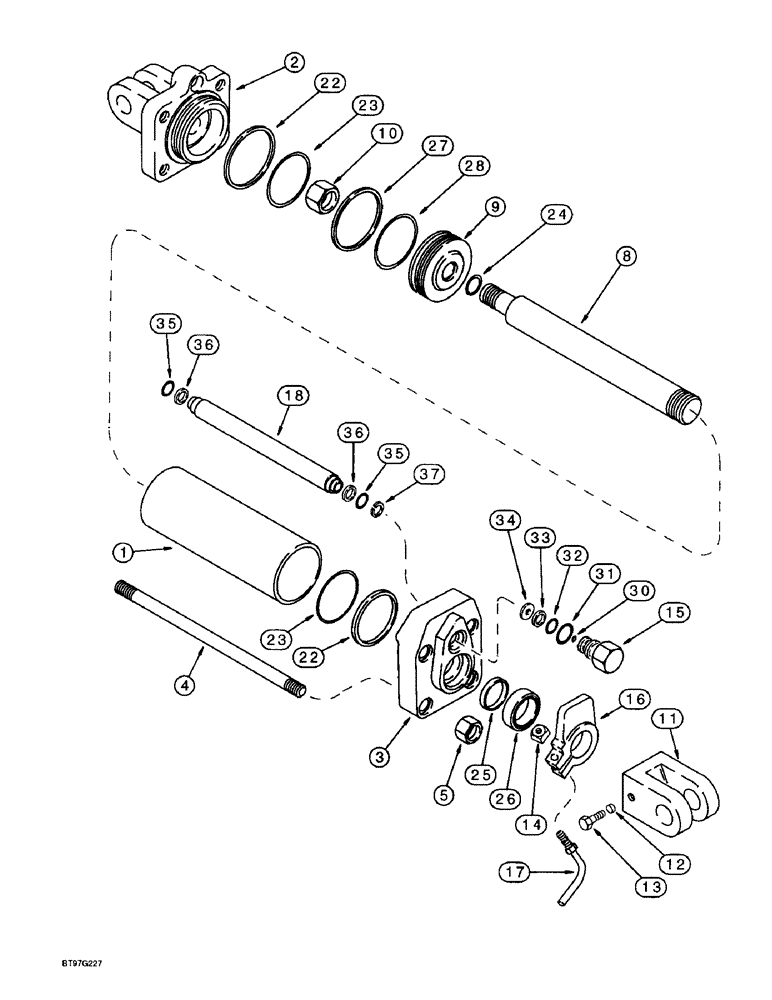

Схема запчастей Case IH 900 - (8-092) - ASSIST WHEEL HYDRAULIC CYLINDER (08) - HYDRAULICS
13
12
28
8
27
22
34
23
35
11
32
22
2
31
30
10
16
36
26
9
36
17
37
24
15
1
5
35
4
23
25
3
14
33
18

Артикул

Название

Примечание

Количество

1263474C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, assist wheel (replaces 145352C91)

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

2

145354C1

HEAD

- cylinder, rear

1шт.

3

1255096C1

END

GLAND - cylinder, front

1шт.

4

145250C1

BOLT,5/8" - 11 x 345mm

- cylinder tie

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

8

1272813C1

ROD

- piston

1шт.

9

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

10

145422C2

PISTON

- cylinder

1шт.

11

1282366C1

RAM FORK

CLEVIS - piston rod

1шт.

12

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

13

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

14

1266705C1

SQUARE NUT

- square, 5/16 inch NC

1шт.

15

1260968C91

VALVE

ASSEMBLY - stop limiting (Includes items 30 through 34)

1шт.

16

224581C3

ARM

STOP - depth, cylinder

1шт.

17

1263435C91

ADJUSTMENT SCREW

- adjusting, L type

1шт.

18

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- cylinder return

1шт.

79978C2

SEAL KIT

KIT - seal, cylinder

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

2шт.

24

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

26

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

1272597C91

KIT

- seal replacement, valve and transfer tube

1шт.

30

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

32

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

33

224301C1

BACK-UP RING

RING - backup

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

35

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

36

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

RING - backup

2шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

Выбрано товаров: 34
