Запчасти Case IH 900 (8-090) - ASSIST WHEEL HYDRAULIC CYLINDER (08) - HYDRAULICS

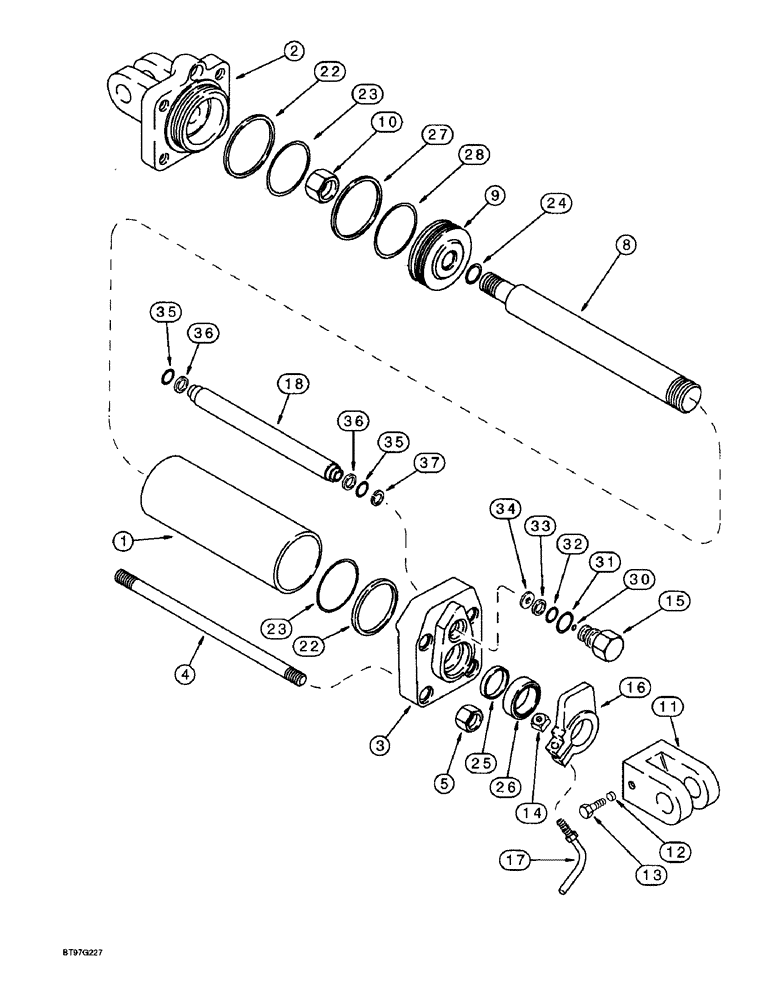

Схема запчастей Case IH 900 - (8-090) - ASSIST WHEEL HYDRAULIC CYLINDER (08) - HYDRAULICS
28
22
35
11
3
5
35
36
25
32
17
26
1
23
31
14
4
34
27
22
18
36
12
24
33
13
37
2
8
10
23
15
9
30
16

Артикул

Название

Примечание

Количество

145352C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, assist wheel (No longer available, order 1263474C91 on page 8-93)

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

2

145354C1

HEAD

- cylinder, rear

1шт.

3

1260880C1

END

GLAND - cylinder, front

1шт.

4

145250C1

BOLT,5/8" - 11 x 345mm

- cylinder tie

4шт.

5

425-1010

NUT,5/8"-11, G5

4шт.

8

145500C1

PISTON ROD

ROD - cylinder piston

1шт.

9

232-46314

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

10

145422C2

PISTON

- cylinder

1шт.

11

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

12

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

13

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

14

1266705C1

SQUARE NUT

- square, 5/16 inch NC

1шт.

15

1260968C91

VALVE

ASSEMBLY - stop limiting (Includes items 30 through 34)

1шт.

16

224579C3

ARM

- cylinder depth stop

1шт.

17

1263435C91

ADJUSTMENT SCREW

- adjusting, L type

1шт.

18

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- cylinder return

1шт.

84919C2

GASKET KIT

KIT - seal, cylinder

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

23

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 inch ID, cylinder head

2шт.

24

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

26

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - 3 inch ID, piston

1шт.

1272597C91

KIT

- seal replacement, valve and transfer tube

1шт.

30

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

32

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

33

224301C1

BACK-UP RING

RING - backup

1шт.

34

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

35

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

36

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

RING - backup

2шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

Выбрано товаров: 34
