Запчасти Case IH 900 (8-086) - ENDWISE TRANSPORT WHEEL HYDRAULIC CYLINDER, CYCLO AIR TRAILING, 12 ROW NARROW (08) - HYDRAULICS

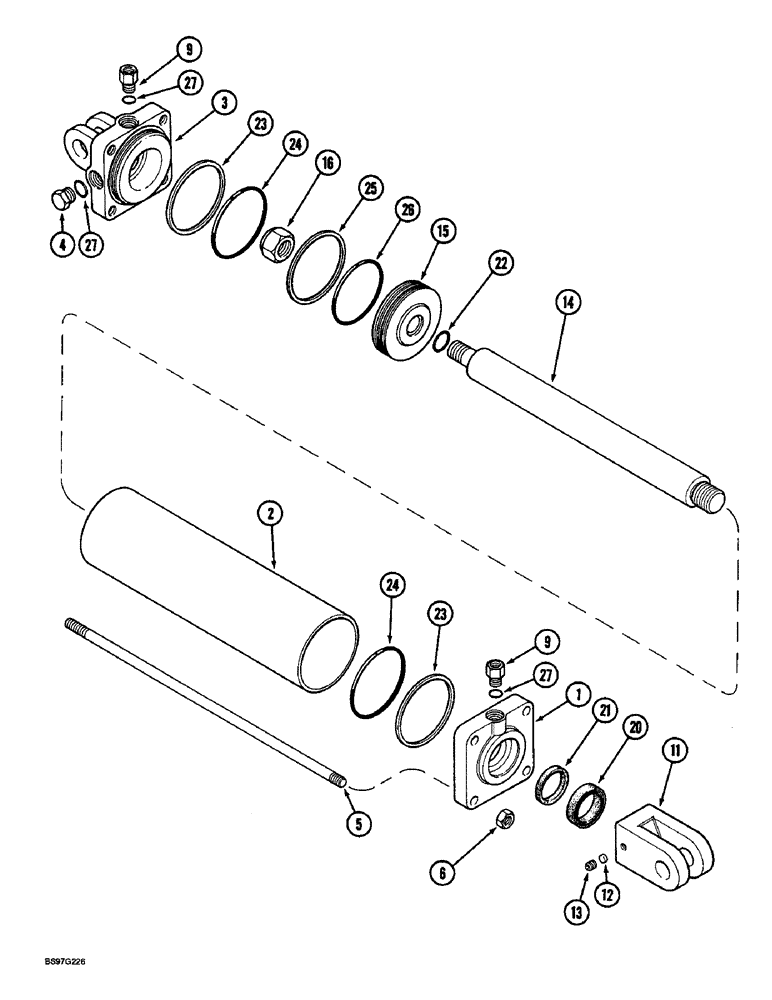

Схема запчастей Case IH 900 - (8-086) - ENDWISE TRANSPORT WHEEL HYDRAULIC CYLINDER, CYCLO AIR TRAILING, 12 ROW NARROW (08) - HYDRAULICS
15
3
27
24
23
4
25
20
16
27
22
14
5
27
9
24
6
21
1
13
11
26
12
9
23
2

Артикул

Название

Примечание

Количество

97761C1

CYLINDER

ASSEMBLY - 127 (5) ID x 406 mm (16 inch) stroke, wheel (Iowa Industrial)

1шт.

1

92857C1

HEAD (CYLINDER)

GLAND - cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

3

1286381C1

HEAD

- cylinder

1шт.

4

214389

PLUG,3/4" - 16 ORB

Includes item 27 Hex Hd, 3/4"-16 ORB

1шт.

5

92873C1

THREADED ROD,3/4" - 10 x 21.812"

BOLT - tie, cylinder retaining

4шт.

6

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

9

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - straight, 3/4-16 male O-ring boss x 7/8-14 inch female

2шт.

11

145240C1

CLEVIS,1 -1/2" - 12

- rod

1шт.

12

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

13

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

14

92872C1

ROD

- piston

1шт.

15

1286382C2

PISTON

- cylinder

1шт.

16

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex, self-locking, 1-1/4 inch NF, grade 8

1шт.

85126C1

SEAL KIT

- seal, repair

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - piston to piston rod

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

24

NSS

NOT SOLD SEPARAT

O-RING - front and rear cylinder, Serial Range: head-body

2шт.

25

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

Выбрано товаров: 23
