Запчасти Case IH 900 (8-084) - ENDWISE TRANSPORT WHEEL HYDRAULIC CYLINDER, CYCLO AIR TRAILING, 12 ROW NARROW (08) - HYDRAULICS

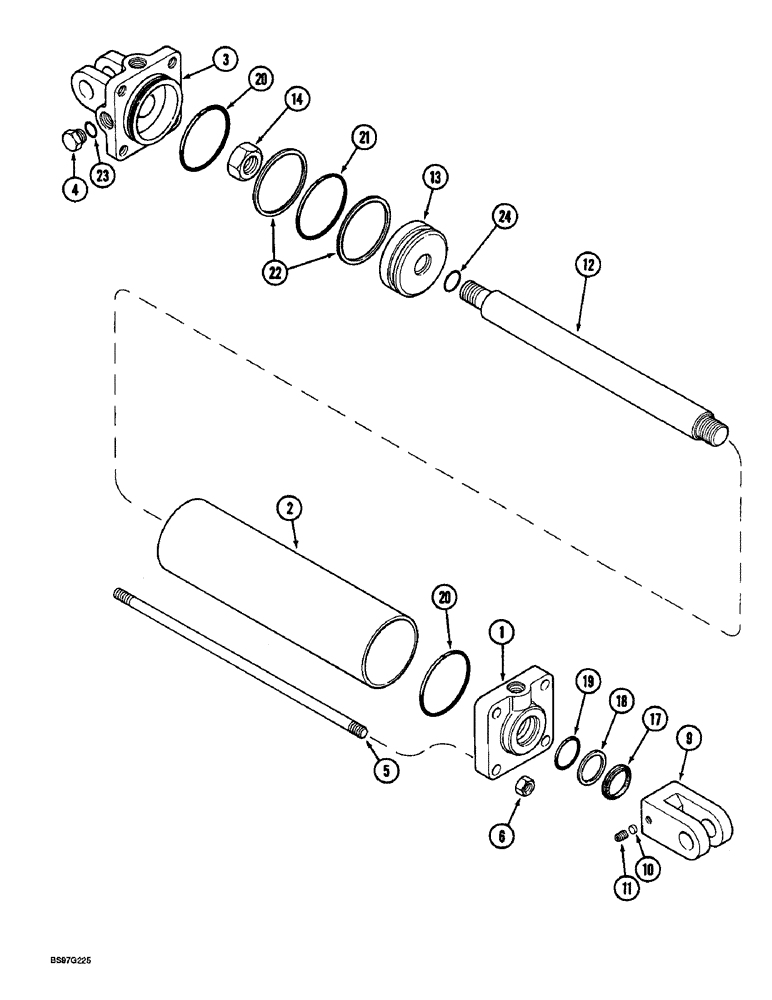

Схема запчастей Case IH 900 - (8-084) - ENDWISE TRANSPORT WHEEL HYDRAULIC CYLINDER, CYCLO AIR TRAILING, 12 ROW NARROW (08) - HYDRAULICS
6
14
20
20
22
18
17
21
11
4
9
13
2
24
5
10
3
1
23
12
19

Артикул

Название

Примечание

Количество

145436C92

CYLINDER

ASSEMBLY - 127 (5) ID x 406 mm (16 inch) stroke, wheel (Prince Manufacturing) (No longer available, order 97761C1 on page 8-87)

1шт.

1

78867C1

END

HEAD - cylinder, front

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order cylinder assembly)

1шт.

3

78865C1

END

HEAD - cylinder, rear

1шт.

4

86512512

PLUG,7/8" - 14 ORB

- hex, 7/8-14 inch O-ring boss, Incl. item 23

1шт.

5

78048C1

ROD,5/8" - 18 x 21 5/8"

BOLT - tie, cylinder

4шт.

6

425-1110

NUT,5/8"-18, G5

4шт.

9

76704C1

FORK

CLEVIS ASSEMBLY - rod end

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

11

84-3386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket headless, 3/8 NF x 3/8 inch, flat point

1шт.

12

78866C1

ROD

- cylinder

1шт.

13

76701C1

PISTON

- cylinder

1шт.

14

27137R1

LOCK NUT,1 1/4"-12, GC

NUT - hex, self-locking, 1-1/4 inch NF, grade 8

1шт.

76980C1

PACKAGE

KIT - seal, repair

1шт.

17

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - 2 ID x 13/64 inch, front head

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - 4-1/2 ID x 9/32 inch (90 durometer) body to front and rear head

2шт.

21

NSS

NOT SOLD SEPARAT

O-RING - 4-1/2 ID x 9/32 inch (70 durometer) piston seal

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Rear head plug

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - 1-1/4 ID x 1/16 inch, piston, Serial Range: rod-piston

1шт.

Выбрано товаров: 22
