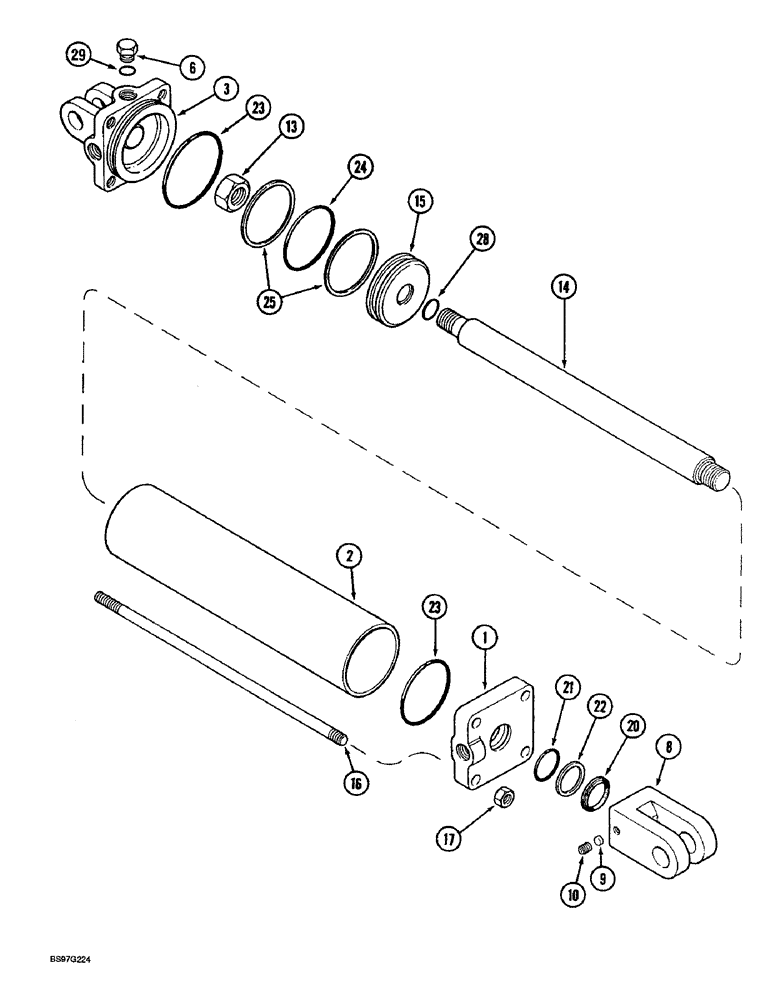

Запчасти Case IH 900 (8-080) - ENDWISE TRANSPORT WHEEL HYDRAULIC CYLINDER, CYCLO AIR TRAILING, 8 ROW, PLATE TRAILING, 8 ROW NARROW (08) - HYDRAULICS

1252323C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke, wheel (Prince Manufacturing) (No longer available, order 1282329C91 on page 8-83)

1шт.

1

T56499

GLAND

- cylinder, front

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - cylinder (Order complete cylinder assembly)

1шт.

3

79939C1

END

HEAD - rear

1шт.

6

214389

PLUG,3/4" - 16 ORB

Includes item 29 Hex Hd, 3/4"-16 ORB

1шт.

8

76704C1

FORK

CLEVIS ASSEMBLY - rod end

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

10

84-3386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket headless, 3/8 NF x 3/8 inch, flat point

1шт.

13

232-46116

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

1шт.

14

79147C1

ROD

- piston

1шт.

15

79148C1

PISTON

- cylinder

1шт.

16

79150C1

STUD,5/8" - 18 x 21 3/8"

BOLT - tie, cylinder

4шт.

17

425-1110

NUT,5/8"-18, G5

4шт.

79151C1

PACKAGE

KIT - seal, repair

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - small, front gland

1шт.

22

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - body to front gland and rear head

2шт.

24

NSS

NOT SOLD SEPARAT

O-RING - piston seal

1шт.

25

NSS

NOT SOLD SEPARAT

RING - backup, piston seal

2шт.

28

NSS

NOT SOLD SEPARAT

O-RING - small, Serial Range: rod-piston

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.
