Запчасти Case IH 900 (8-064) - ROW MARKER HYDRAULIC CYLINDER, CYCLO AIR & PLATE PLANTERS, 6 ROW NARROW & 4 ROW (08) - HYDRAULICS

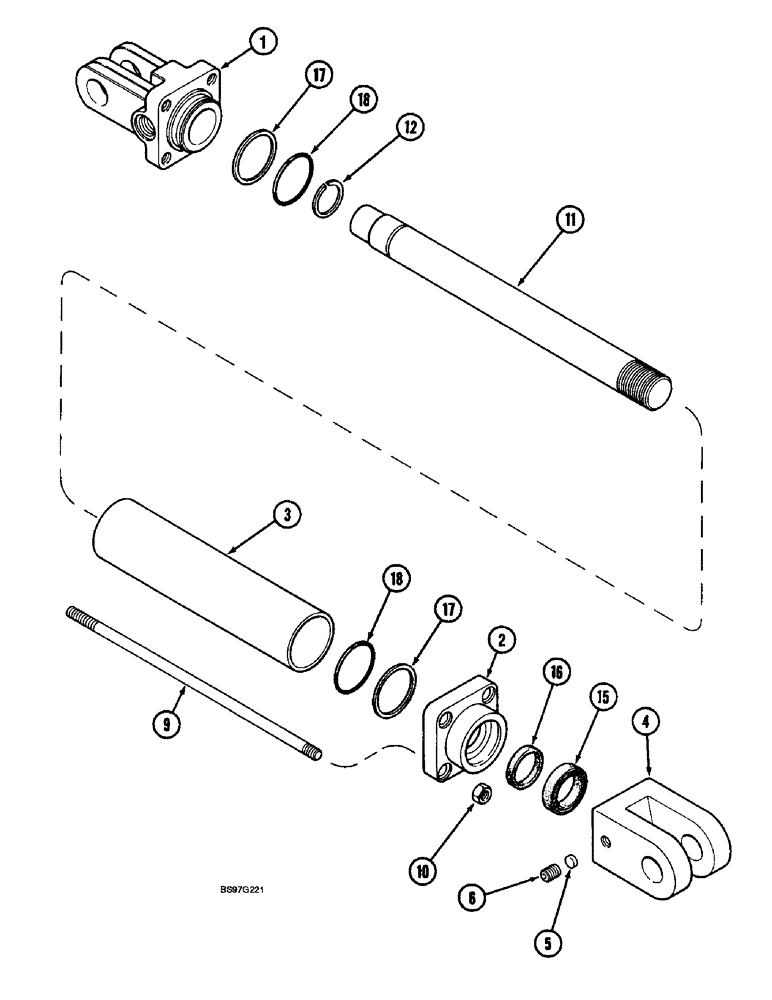

Схема запчастей Case IH 900 - (8-064) - ROW MARKER HYDRAULIC CYLINDER, CYCLO AIR & PLATE PLANTERS, 6 ROW NARROW & 4 ROW (08) - HYDRAULICS
16
11
17
18
17
9
10
5
18
3
1
12
4
2
6
15

Артикул

Название

Примечание

Количество

1272484C92

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 51 (2) ID x 203 mm (8 inch) stroke

1шт.

1

1272768C1

HEAD

- cylinder, closed end

1шт.

2

1272769C1

HEAD

GLAND - seal, rod end

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - cylinder (Order cylinder assembly)

1шт.

4

145233C1

CLEVIS,1/4" - 12

- rod end

1шт.

5

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

6

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup point

1шт.

9

145248C1

ROD,3/8" - 16 x 318mm

BOLT - tie, cylinder

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

92887C1

PISTON ROD

ROD - cylinder and piston, 32 mm (1-1/4 inch) diameter

1шт.

12

92888C1

RING, LOCKING

RING - retaining, external

1шт.

79974C2

SEAL KIT

KIT - seal repair

1шт.

Some O-rings in kit are not used in this application.

1шт.

15

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

17

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - head

2шт.

Выбрано товаров: 17
